SRM-22

From $129,990 Tow-Away Nationwide* or From $436 per week*

12 MONTH REGISTRATION

2 YEAR FACTORY WARRANTY

5 YEAR STRUCTURAL WARRANTY

EXTENDED WARRANTIES AVAILABLE

Van Overview

The SRM-22 is a 22ft motorhome with electric drop-down bed, designed to fit the LDV Deliver 9 platform and deliver a compact yet luxurious travel experience for those who crave adventure. Offering the freedom of motorhome travel without the need to tow, it features a full ensuite with a premium shower and toilet for everyday comfort on the road. Drawing inspiration from Snowy River’s successful campervan range, the SRM-22 brings together clever space utilisation, refined finishes and practical functionality. Ideal for travellers seeking a stylish and adventure-ready way to explore Australia, it delivers confidence, comfort and freedom in one streamlined motorhome.

Highlights

Specs

Vehicle

Make/Model LDV Deliver 9 single cab chassis XLWB - 4048mm
Power 128kW @ 3500rpm
Torque 420Nm @1500-2400rpm
Vehicle Colour White
Fuel Capacity 80L
Drive Type Rear Wheel Drive
Transmission 8 speed ZF automatic
Wheel Type 16” steel wheels with full size spare 195/75R16C tyres
Vehicle Seating 1 X driver seat and 1 X passenger seat - both swivel seats
Multimedia Screen 12.3” Infotainment Display with Bluetooth, FM/AM/MP3 Player, Apple CarPlay™ & Android Auto™, DAB Radio
Vehicle Length 6780mm
Vehicle Width 2466mm
Vehicle Height 3080mm
GVM 4495kg
GCM 6000kg
Towing Capacity 2250 braked, 750 unbraked *subject to GCM

External

Windows Aluminium with Blind & Flyscreen Flat
Main Door Dometic 1750 LH Aluminium Door
Insulation YES
Roof Hatches 1 x Small
Picnic Table 1 x Metal Black Combo Picnic Table
Awning 12ft Carefree Altitude Black
Access Doors Aluminium Black Frame
Main Door Grab H. Long Black LED
Fan Hatches 2 x 12v with LED Light

Electrical

Annex Lights 2 x Doorside (Dual LED)
Internal Lights LED
Strip Lights Under Benchtop & OHC
Reading Lights 2 x Bedroom, 1 x Dinette Black with USB
Solar Power 1 x 200W Panel
Reversing Camera Yes - Wireless
Battery Pack 1 x 100Ah Lithium on Chassis
TV Point 2 x Internal, 1 x External
TV Antenna Wineguard HV Sensor
Radio Antenna Roof Mounted
Electrical System Projecta PM410-BT7 System
240v P.P. 9 x Internal, 1 x External
12v P.P. 2 x Internal, 1 x External
Wireless Charger YES x 2
Speakers 2 x Internal, 1 x External Fusion
External TV Box YES
Water Level Gauge Projecta for 2 x tank
Booster Projecta DC to DC 30A Lithium Charger
Alarm Smoke & Gas

Internal

Bed 1880 x 1530mm Q. Innerspring + Pillow Top
Peak Bed YES
Divider Screen Dividing Curtain to Bedroom Area
Door Handles Hidden & Long Push Handles Black
Int. Grab Handle YES - Curve Black LED
Magazine Holder YES x 1
TV Arm YES x 1 Standard, 1 Lift Up, 1 Bracket
Bath. Accessory Kit YES - Black
Towel Rail YES x 1 Black
Shower Door Mirror Door with Black Frame
Cutlery Insert YES - LT
Cabinet Door Hinge Standard
Shower Caddy YES
Sink Cover YES

Chassis

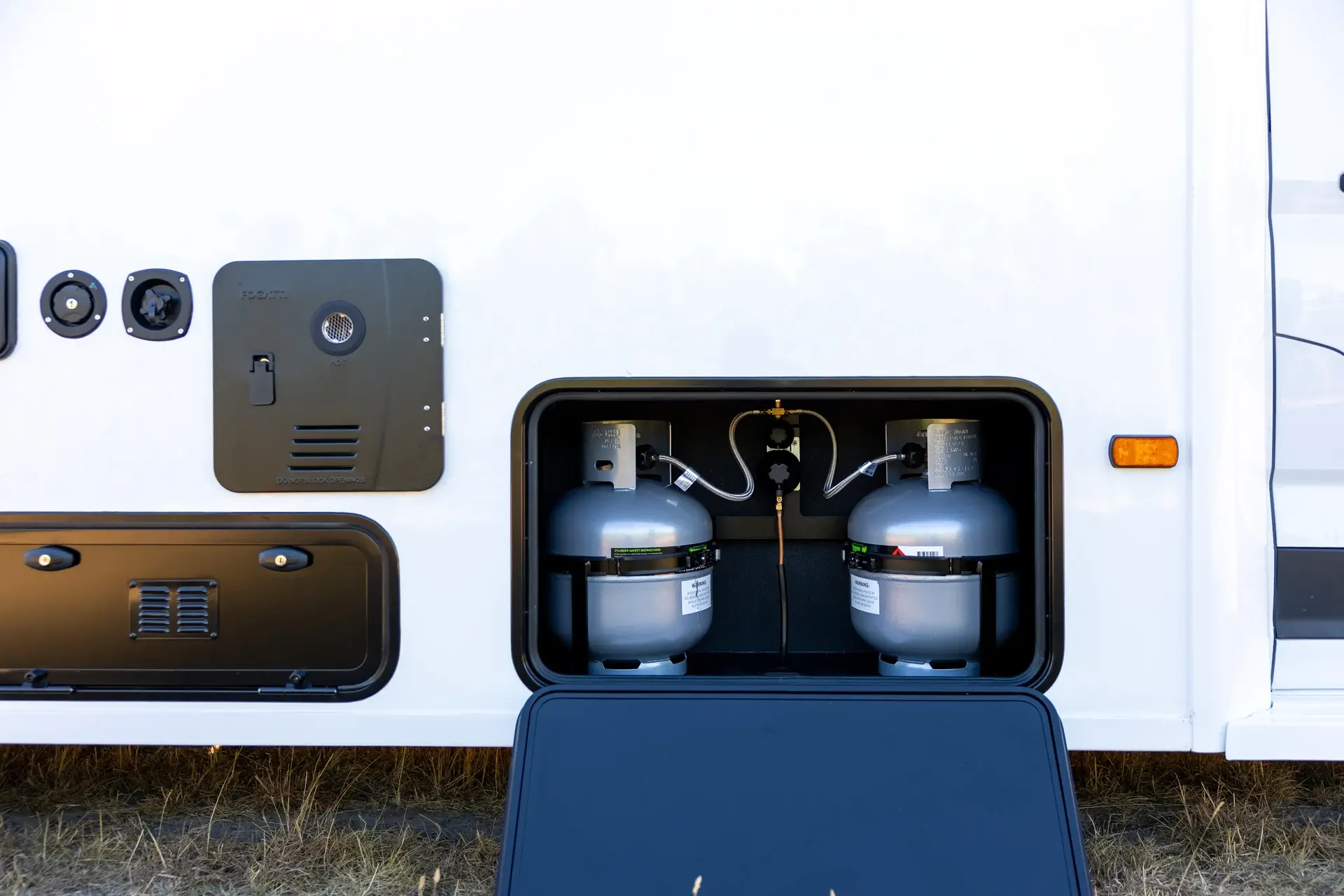

Gas Bottles 2 x 9kg
Fresh Water Tanks 1 x 110Lt
Grey Water Tanks 1 x 60L
Step Single Electric LED

Appliances

Rangehood Slimline 12V
Stove Thetford Hob Topline Hybrid
Fridge Thetford T2208 (224Ltr)
Washing Machine Front Load W/M
Microwave Convection
Air-Conditioner Dometic Freshjet 7 Plus A/C
TV 1 x 24" Smart LED
H.W.S. Fogatti Instant Gas Black
Audio/Video 12v Fusion Stereo

Plumbing

Shower Large with Footrest F/Glass
External Shower Black Square
Toilet Dometic Cassette Ceramic Bowl
Kitchen Sink Black Square Single Bowl
Sink Tap 3 Way Black
Water Filter YES
Ensuite Basin Counter Top Ceramic Oval Blackv
Basin Tap Swivel Black
BBQ Gas Point YES x 1
Water Pump 1 x 12v Pump
Main Water Inlet YES on Wall
Lockable T. Filler 2
Shower Head/Mixer Black

Colours

Furniture Ply White
Benchtop Edging Thin
Furniture Style Curved
Bed Head Full HT As Per Upholstery
Main Door Padding YES with Magazine Pocket
Wall Covering Carpet Lining
Slide Out Surround YES

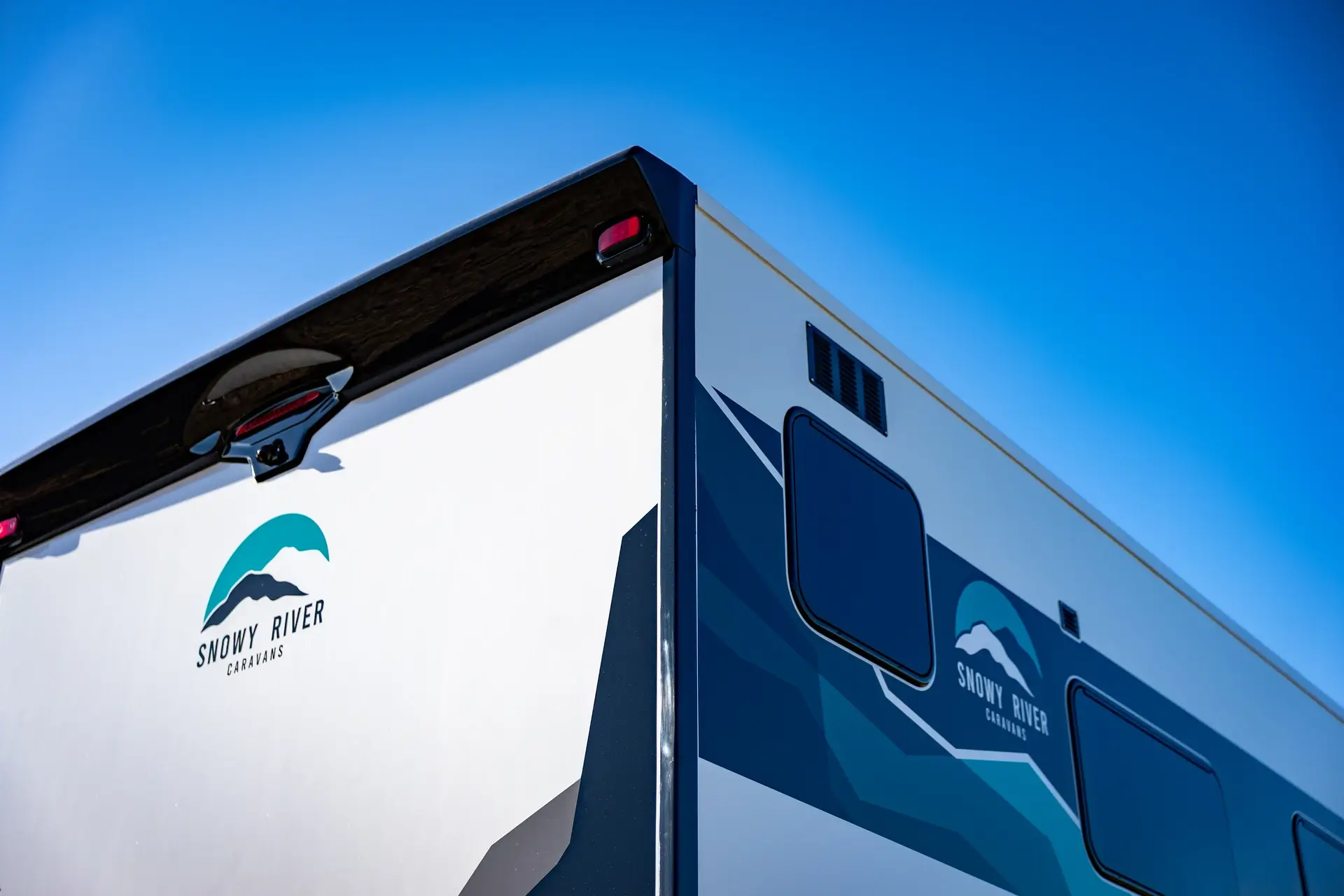

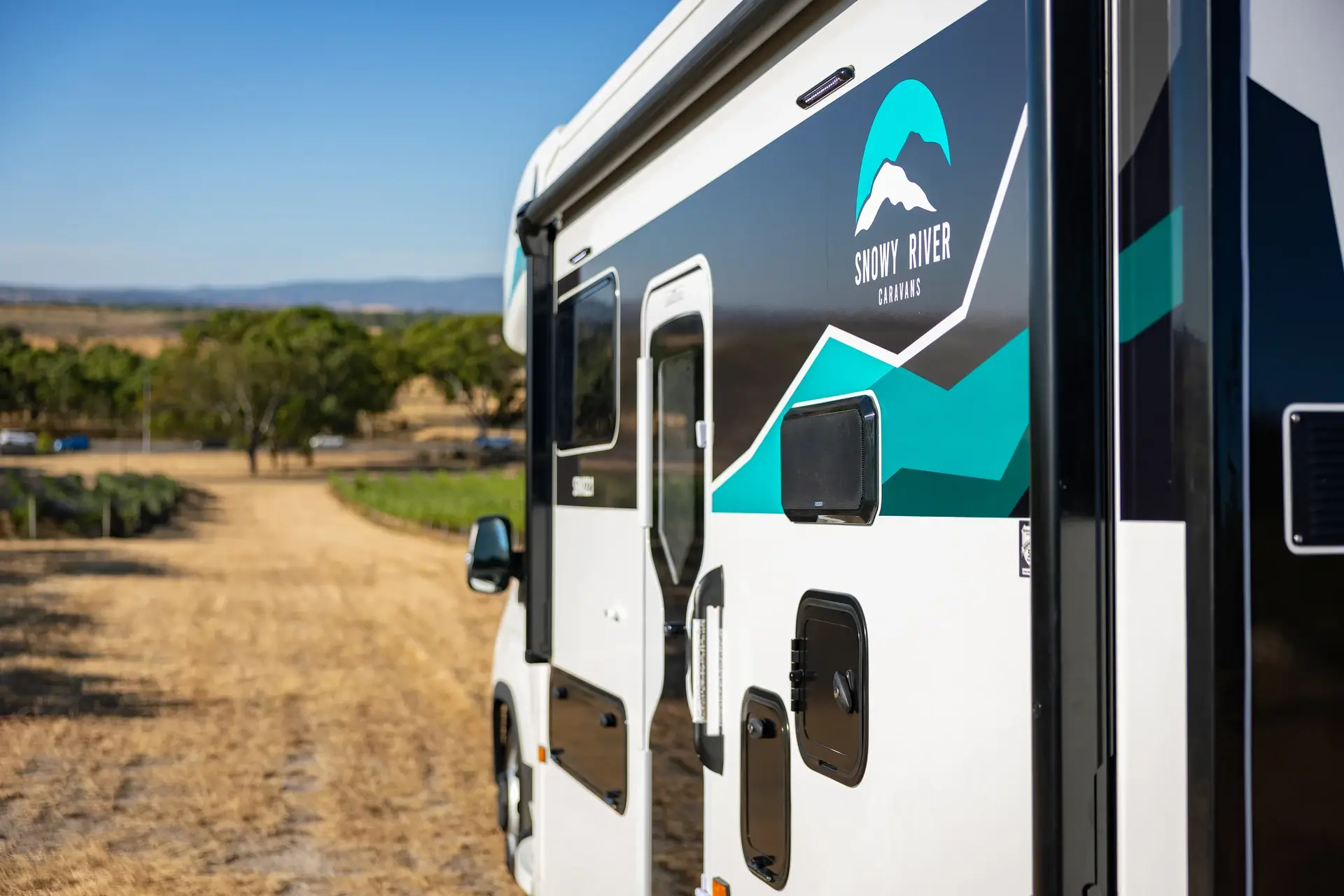

Exterior

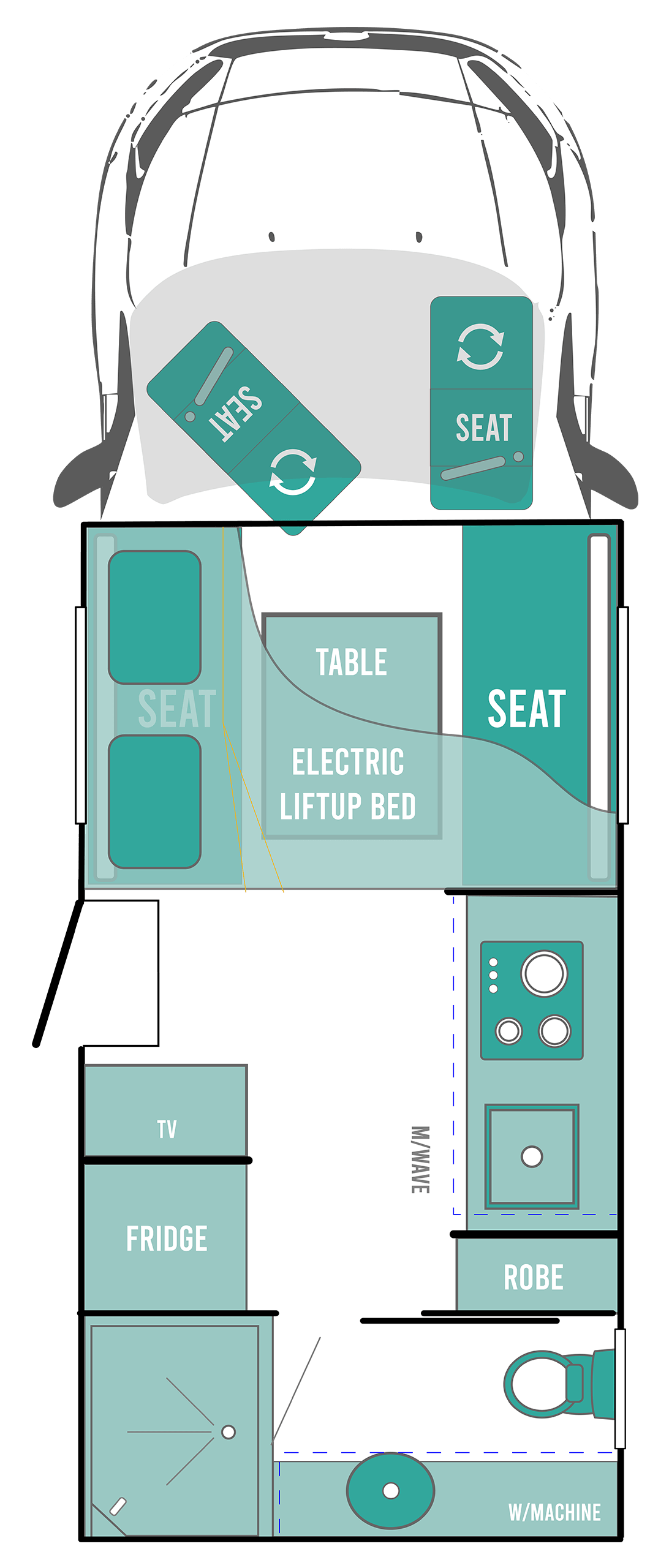

Floorplan

3D Tour
