Van Overview

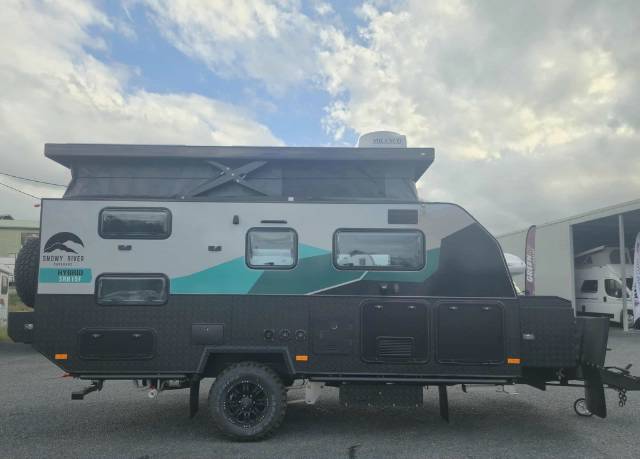

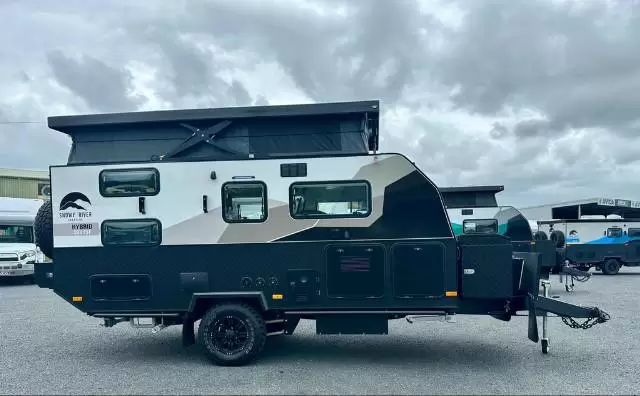

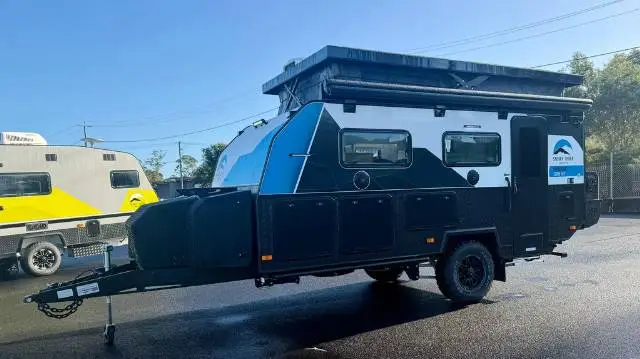

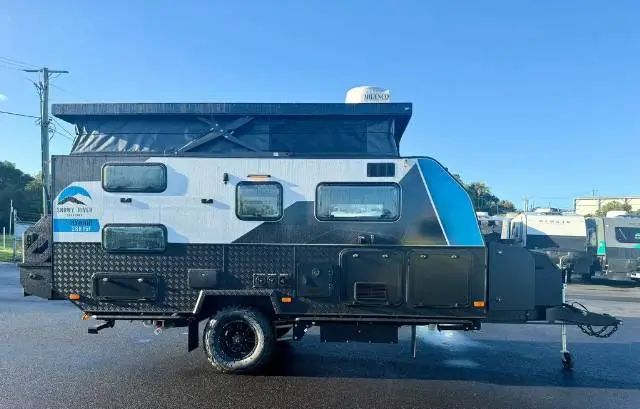

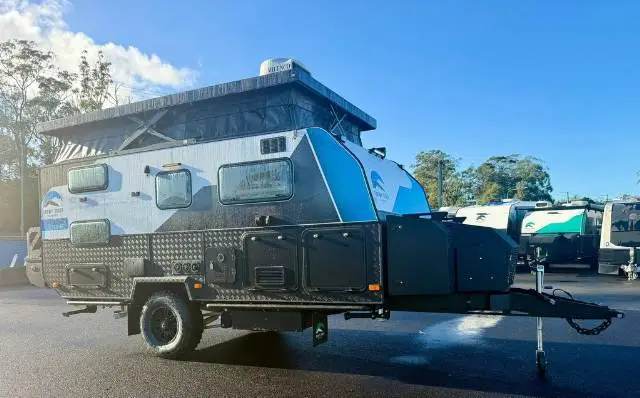

The SRH-15F is a 15ft hybrid caravan with bunks, offering a practical and comfortable way for families to travel together. Its clever layout includes double bunks, ensuring plenty of space for everyone to unwind after a day of exploring. Whether heading off-grid or staying at a caravan park, the SRH-15F makes family adventures easy and enjoyable.

Highlights

Specs

Chassis
  • Deck 6" (50x150) Raptor Coating Black
  • A-Frame 6" (50x150) Drop & Extended 300mm
  • Hitch DO35 - BOTTOM

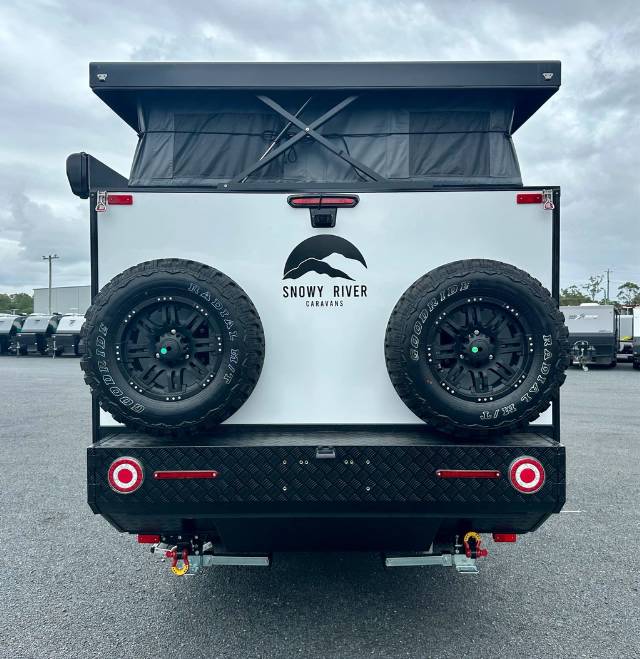

  • Bumper Bar Platform

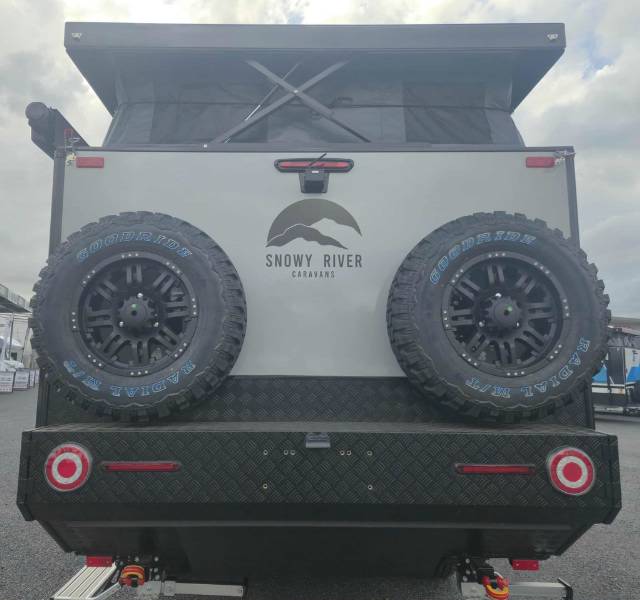

  • Spare Wheels 1 mounted on bumper bar

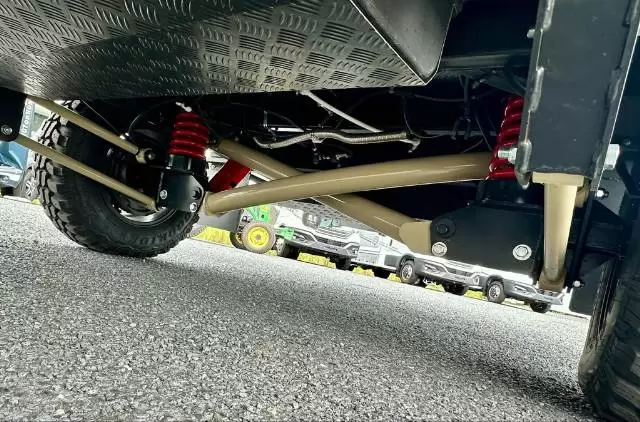

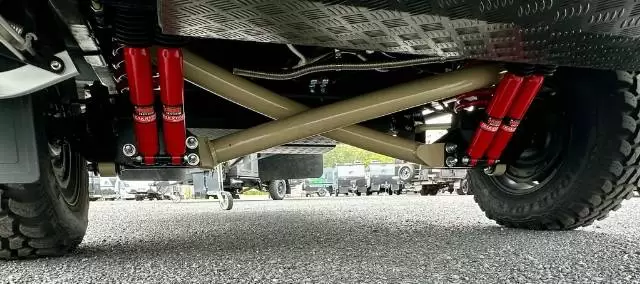

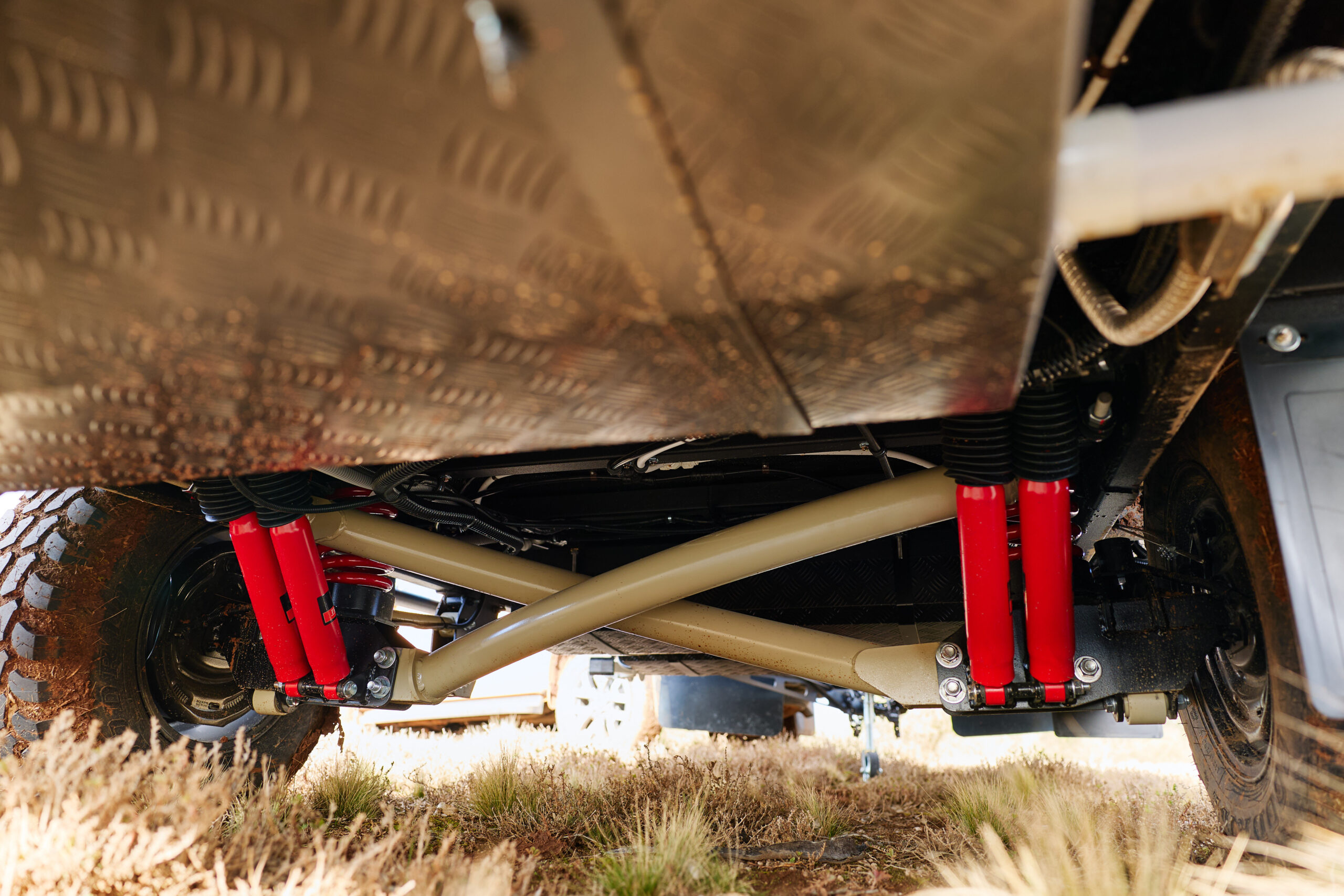

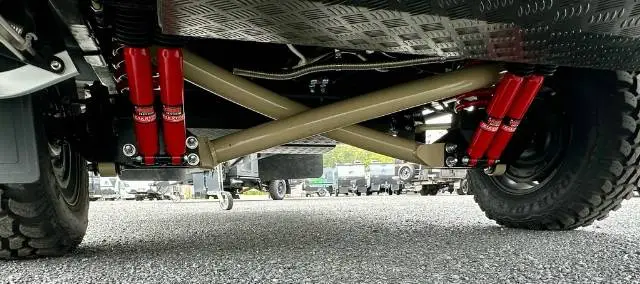

  • Suspension Rating SR-Xplore Symmetrical Coil 3000KG (Single axle)
  • Brakes 12"
  • Shockers YES x 2 per Wheel
  • Rims 16" Alloy Black
  • Tyres 265/75 R16 MT
  • Gas Bottles 2 x 9kg
  • Fresh Water Tanks 2 x 100Ltr
  • Grey Water Tanks 1 x 100Ltr
  • Jerry can Holders 2 mounted on bumper bar
  • Step Single Manual
  • Battery Holders YES x 1 Dual
  • Jack Trail A Mate
  • Jockey Wheel Side Winder
  • Mud Flaps Wheels & Battery Box
  • Recovery Point YES
External
  • Windows Aluminium with Blind & Flyscreen
  • Main Door Yongan 1750 RHR Black

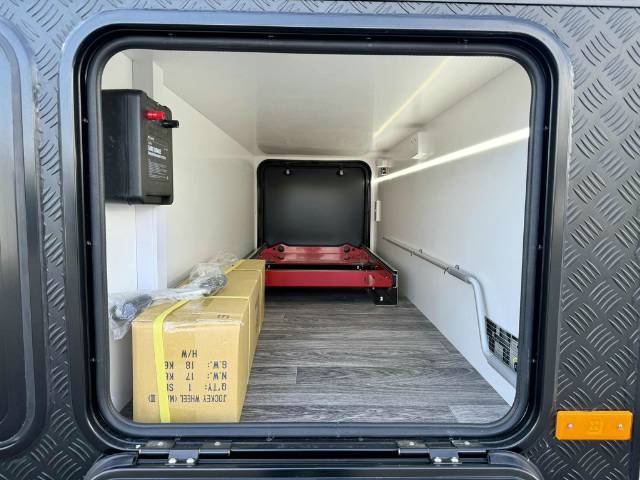

  • Boots Tunnel Boot Only
  • Cladding White Fiberglass
  • Front Protection Full Piece Black Checker Plate
  • Side Protection 750mm Black Checker Plate
  • Rear Protection 750mm Black Checker Plate
  • Insulation YES
  • Roof Hatches 1 x Small
  • Fan Hatches 1 x 12v with LED Light
  • Pressure Hatches Milenco DRA
  • J-Mould Black with Black Infill
  • Wheel Spats Checker Plate Black
  • Picnic Table 1 x Metal Black Combo Picnic Table
  • Awning Electric Cassette 4M
  • Slideout Tray YES x 1
  • Access Doors Aluminium Black Frame
  • Main Door Grab Handle Long Blue LED

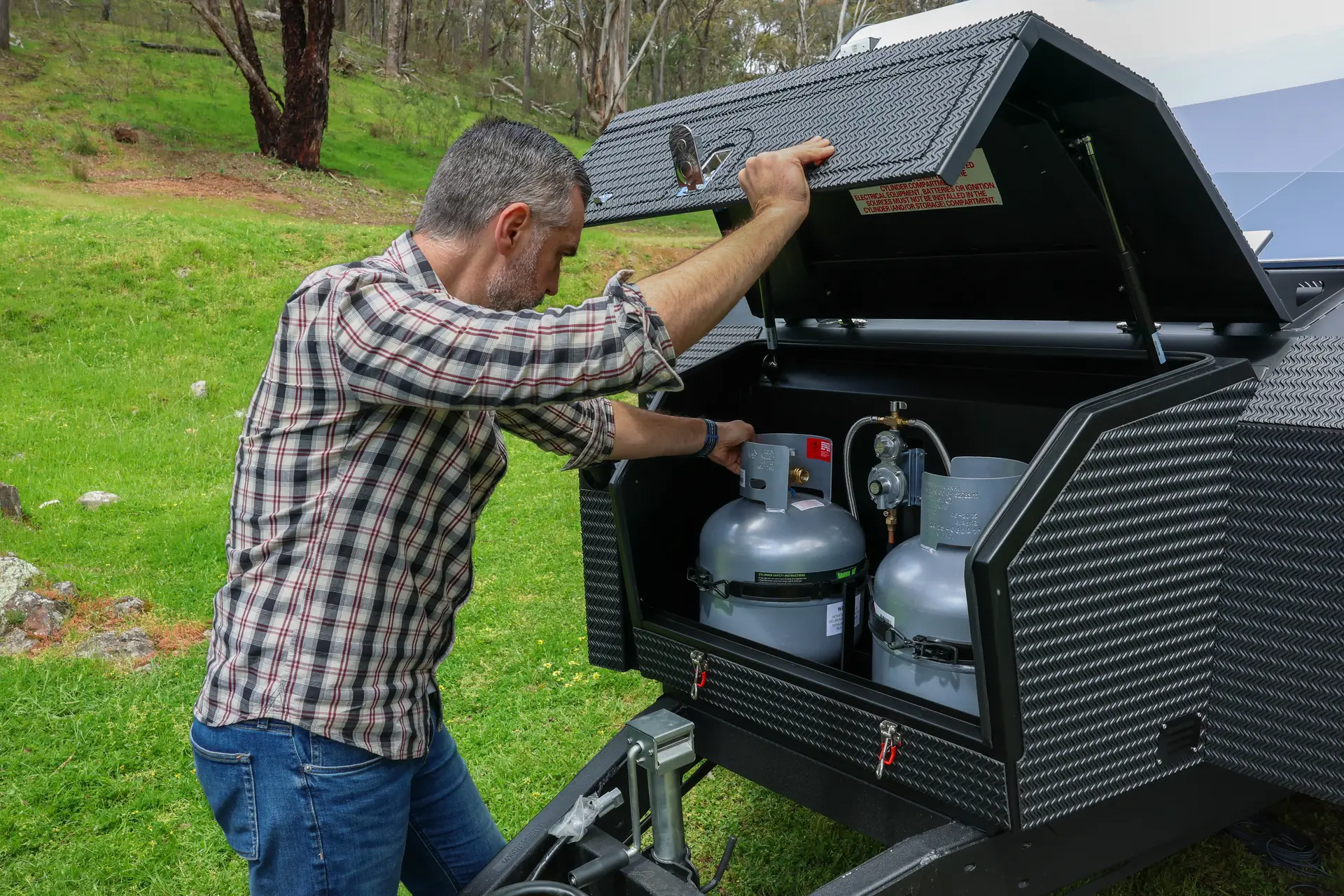

  • Toolbox AT Toolbox with G/Bottle Front & Slide Both Sides on A-Frame
  • Scrub Bar YES
Electrical
  • Annex Lights 2 x Doorside, 1 x Offside (Dual LED Bug)
  • LED Spotlights 1 x Front
  • Internal Lights Large LED
  • Strip Lights Under OHC with Dimmer Switch
  • Reading Lights 2 x Bedroom, 2 x Bunk Silver with USB
  • Boot Lights LED Strip
  • Car Plug 12 Pin Flat & Anderson Plug

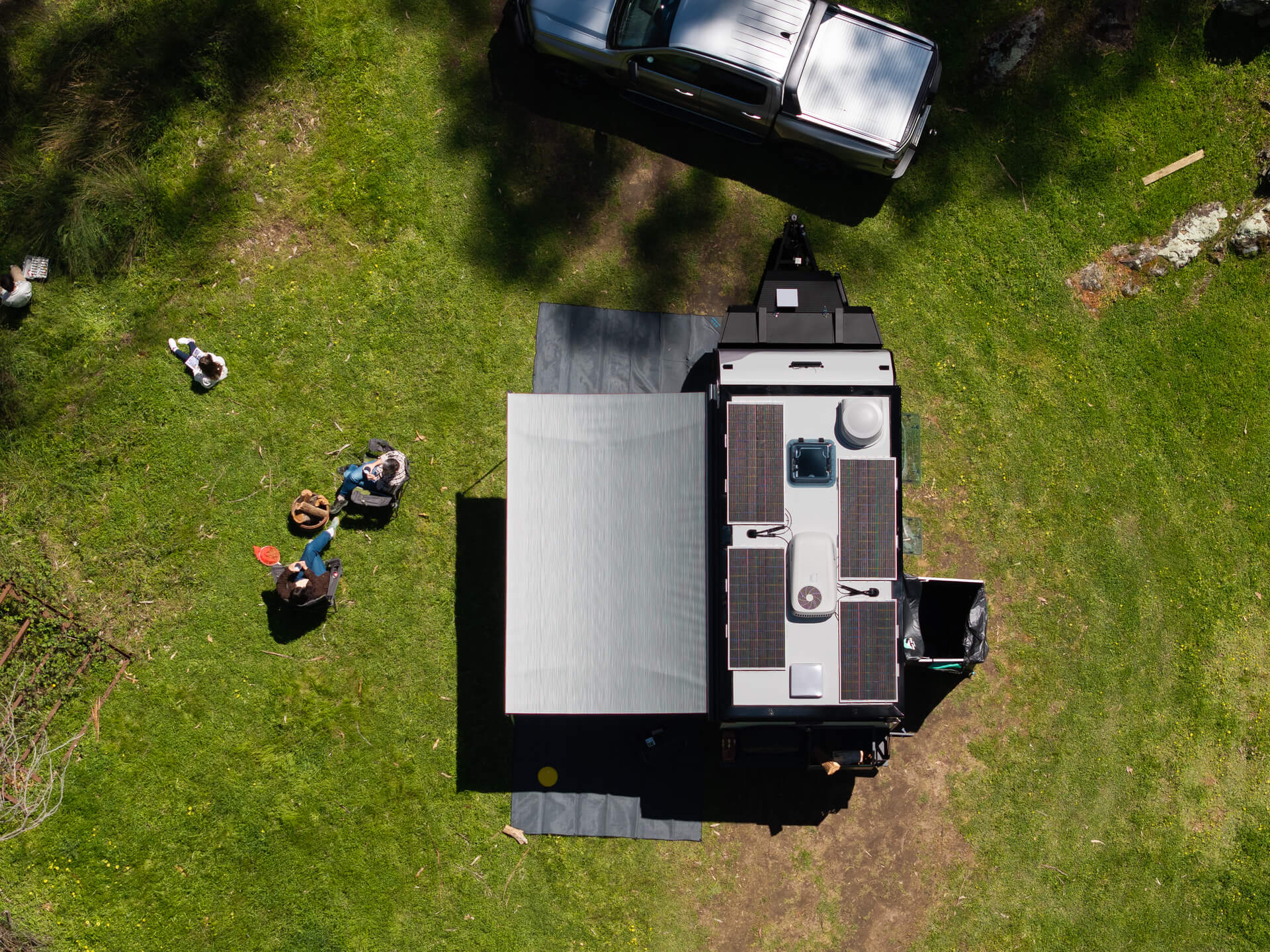

  • Solar Power 1 x 150W & 3 x 200W Panel
  • Rear Camera Yes - Wireless
  • Battery Pack 2 x 300Ah Lithium on Chassis
  • TV Point 1 x Internal, 1 x External
  • TV Antenna Milenco DRA
  • Radio Antenna Milenco DRA

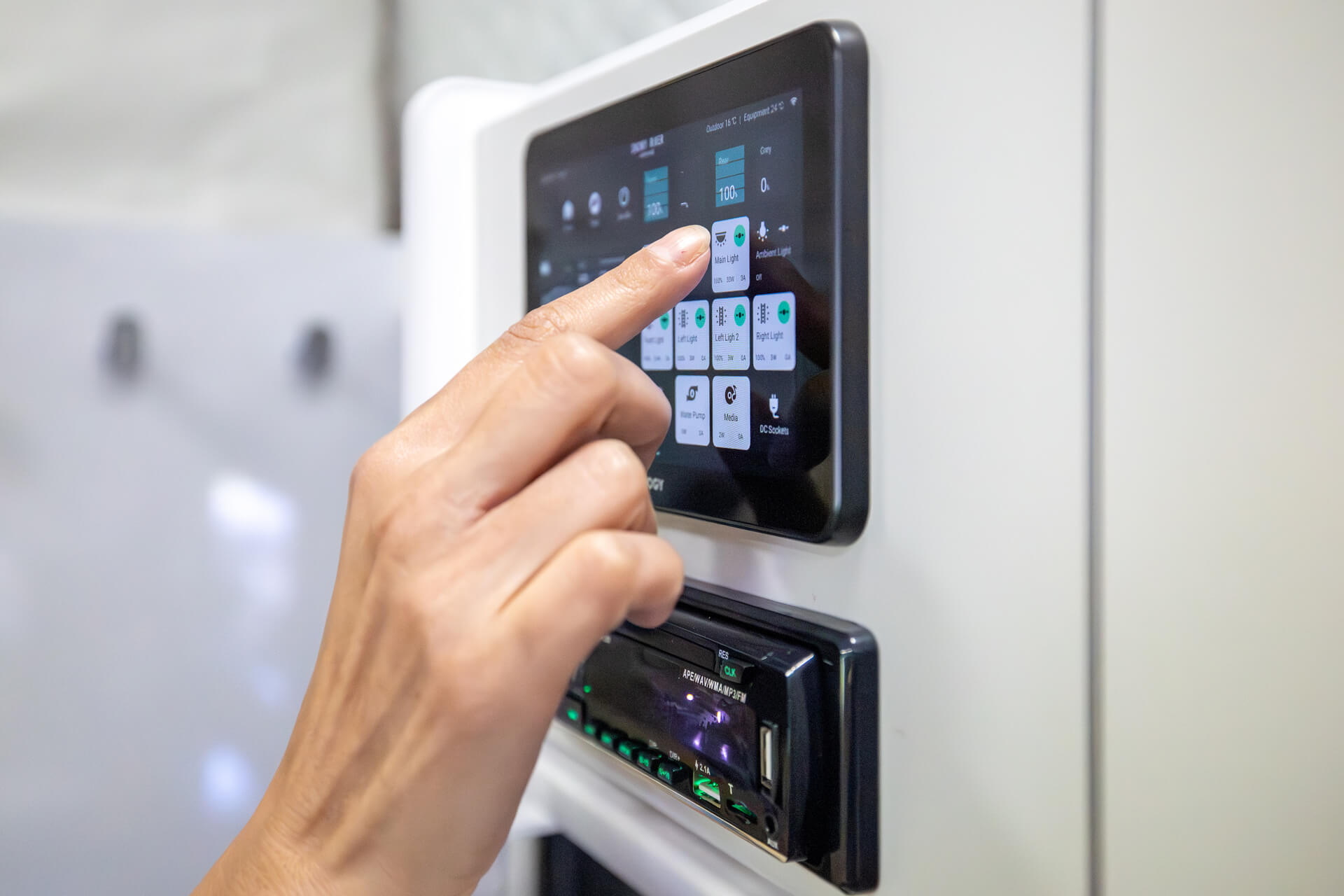

  • Electrical System Renogy OffGrid Advance System
  • Brake Safe Unit Sure Brake
  • 240v P.P. 7 x Internal, 1 x External
  • 12v P.P. 2 x Internal, 2 x External
  • USB P.P. 1 x Internal
  • Wireless Charger YES x 2
  • Speakers 2 x Internal, 2 x External Black
  • External TV Box YES
  • Water Level Gauge Renogy for 3 x tank
  • Tyre Pressure Monitor YES
Furnishings
  • Mattress 1880 x 1490mm Folding Q. Innerspring

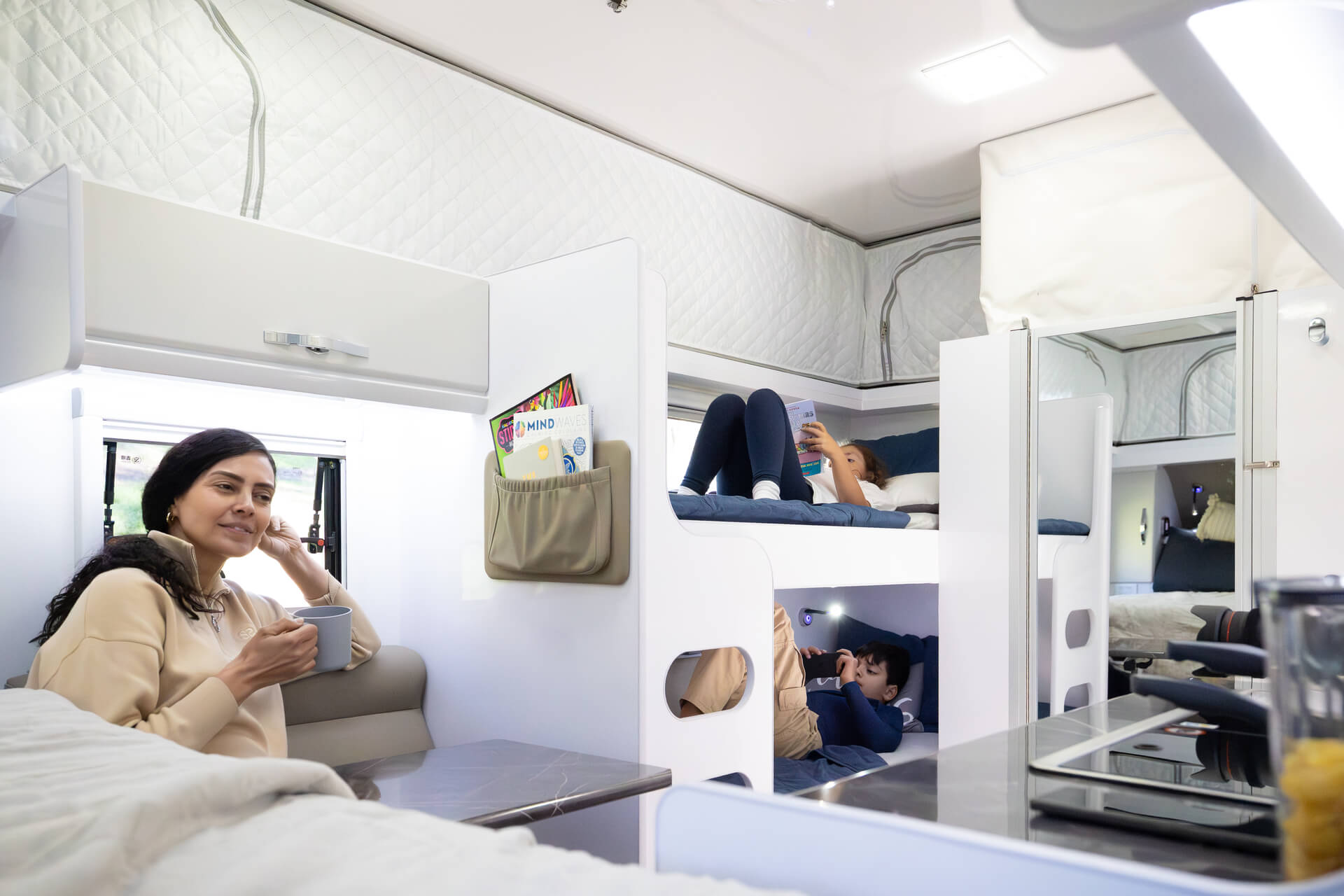

  • Bunk Option 2 x Bunks
  • Bunk Mattress 2 x 1820 x 650mm Single Innerspring
  • Main Door Cover Roller Blind
  • Door Handles Convex Handles Chrome
  • Int. Grab Handle YES - Curve Chrome
  • Magazine Holder YES x 1
  • TV Arm YES x 1 Standard, 1 Bracket
  • Table Leg Swivel
  • Bath. Accessory Kit YES - Chrome
  • Shower Door Mirror Glass Door
  • Cabinet Door Hinge Piano
Colours
  • Furniture Ply White
  • Benchtop Edging Postformed
  • Furniture Style Flat
  • Seat Back Rolled
  • Bed Head Full HT As Per Upholstery
Appliances
  • Stove Dometic 2 Burner/Sink Combo
  • Fridge Dometic NRX60C (55Ltr)

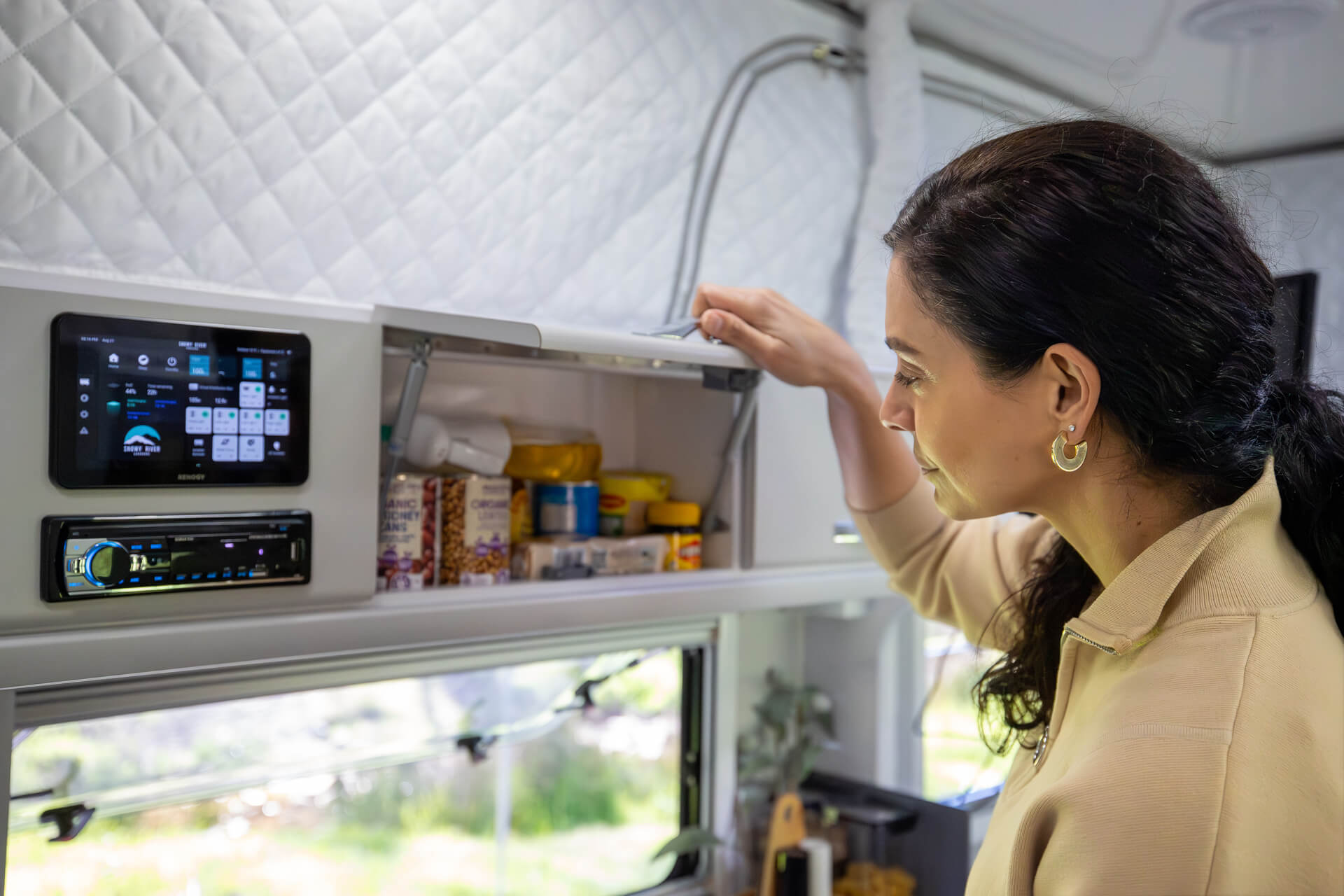

  • Audio/Video 12v Single Din Stereo
  • Air-Conditioner Belaire 2400 A/C
  • TV 24" Smart LED
  • H.W.S. Fogatti Instant Gas Black
  • Heater Diesel Heater
  • Fan YES x 2

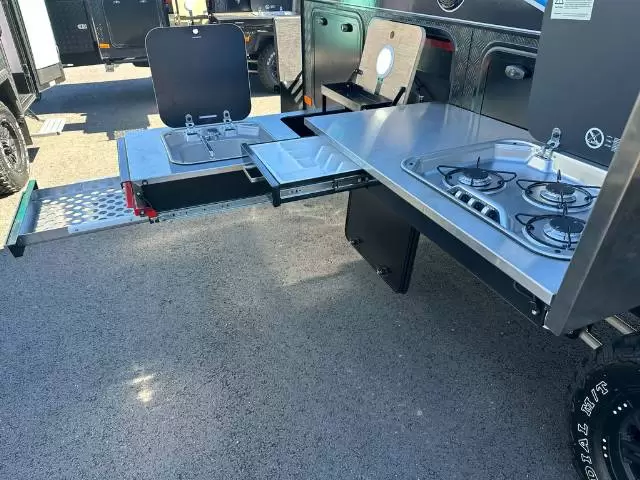

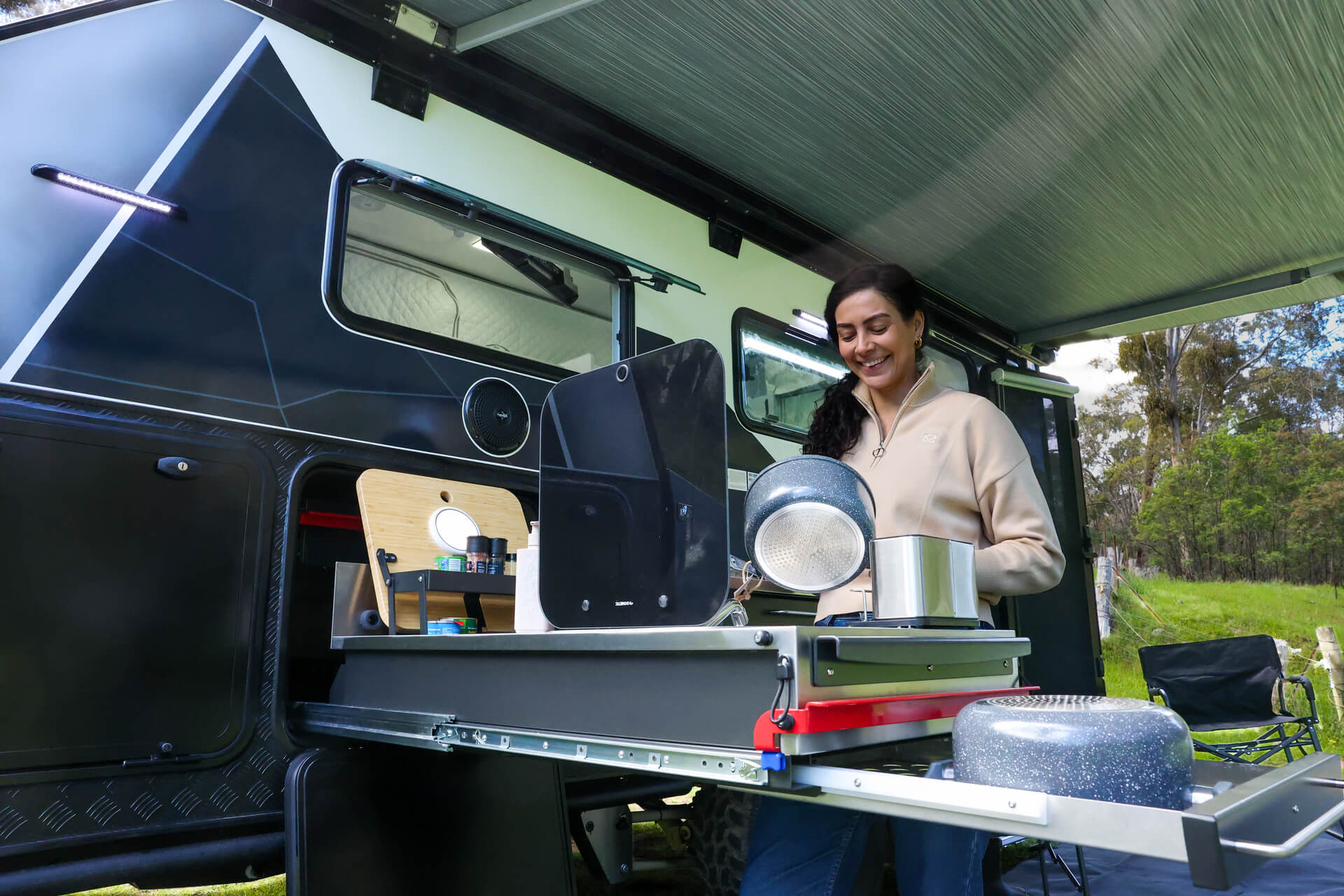

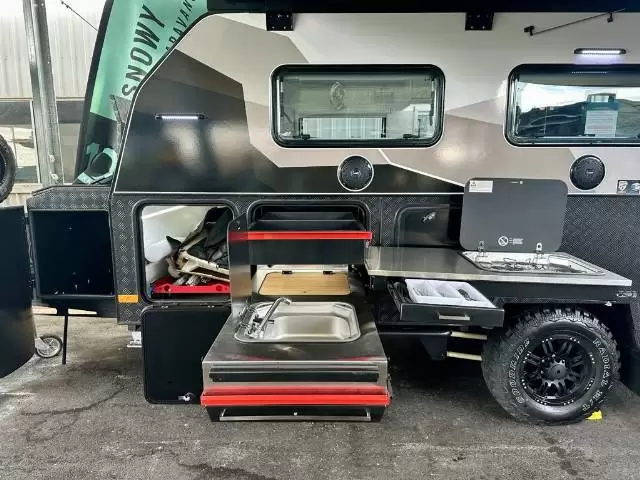

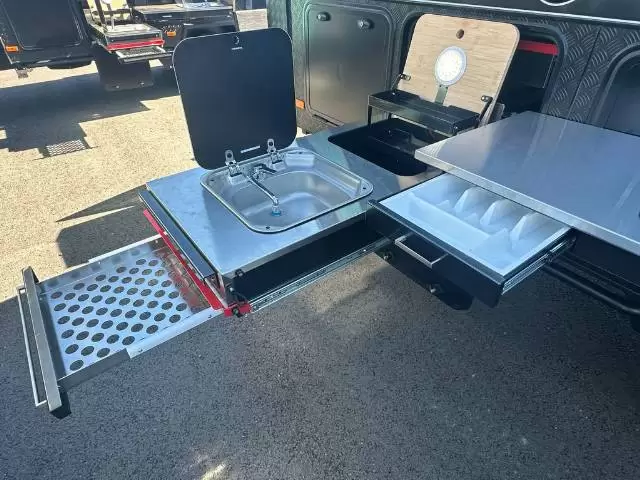

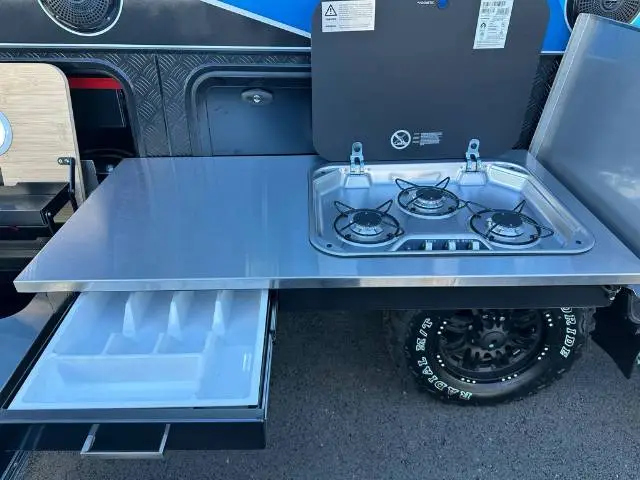

  • Slideout Kitchen LT Swing & Storage Box
  • Inverter 3000W Inverter & Charger
Plumbing
  • H.W.S. Fogatti Instant Gas Black
  • Heater Diesel Heater
  • Slideout Kitchen LT Swing & Storage Box
  • Shower Shower/Basin/Toilet Combo
  • External Shower Black Square
  • Toilet Dometic Cassette Ceramic Bowl
  • Kitchen Sink Dometic 2 Burner/Sink Combo
  • Sink Tap Low Profile
  • Ensuite Basin Shower/Basin/Toilet Combo
  • Basin Tap Chrome
  • BBQ Gas Point YES x 1
  • Water Pump 1 x 12v Pump
  • External Water Tap YES on A-Frame & Protector
  • Main Water Inlet YES on Wall
  • Lockable T. Filler 2
  • Shower Head/Mixer Chrome
Measurements
  • ATM (Kg) 3000
  • Axle Rating (Kg) 2900
  • Travel Length (mm) 7198
  • Travel Height (mm) 2800
  • Body Length (mm) 4715
  • Tow Ball (Kg) 268
  • Tare Weight (Kg) 2574
  • Travel Width (mm) 2310

Exterior

Floorplan

SRH-15F

3D Tour

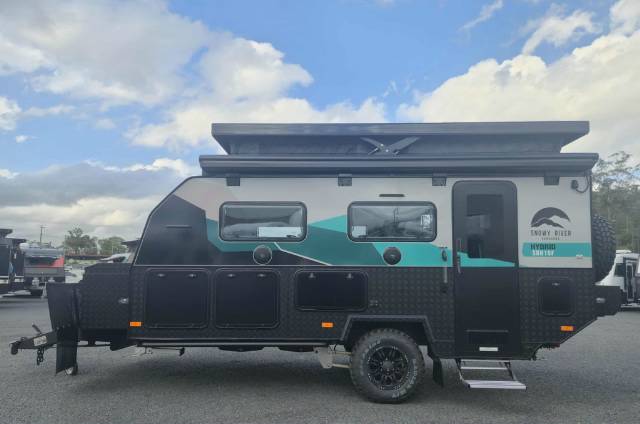

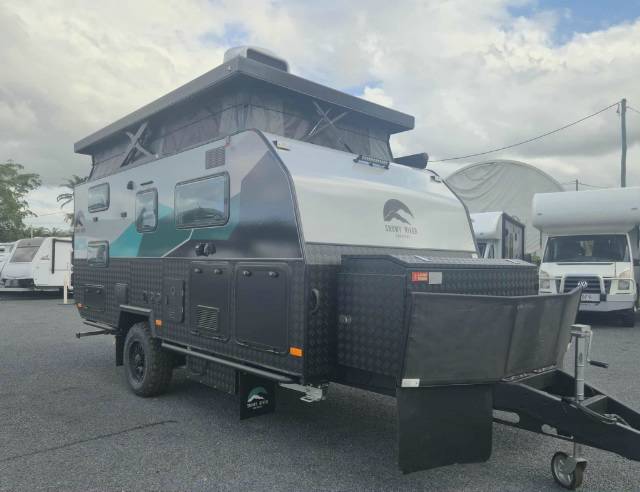

View available SRH15F in-stock caravans

2513722
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-1.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-2.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-3.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-4.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-5.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-6.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-7.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-8.jpg
https://media-caravea.syd1.digitaloceanspaces.com/caravans/6EC13872/6EC13872-25303-9.jpg
SNOWY RIVER

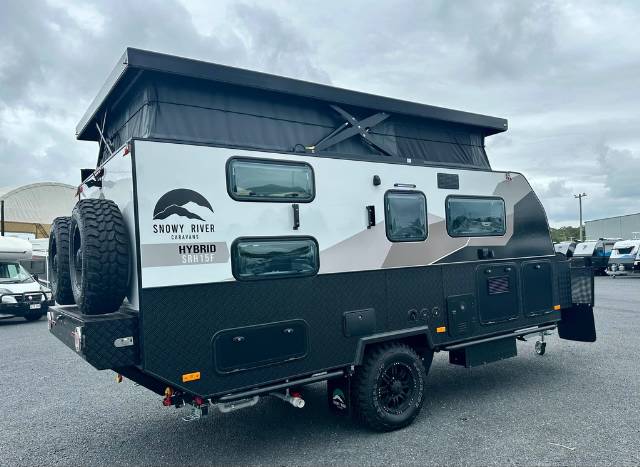

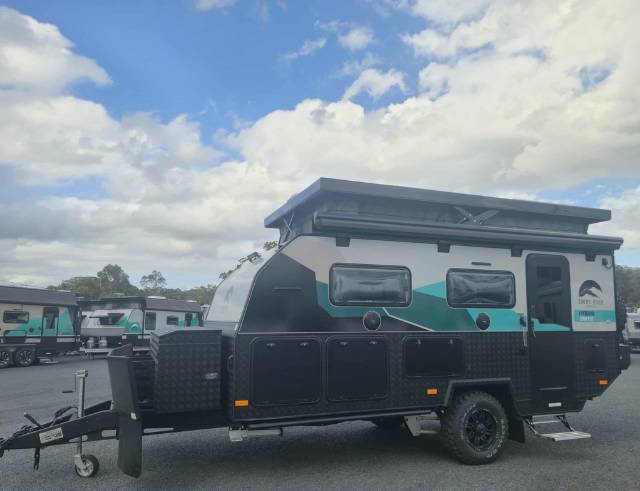

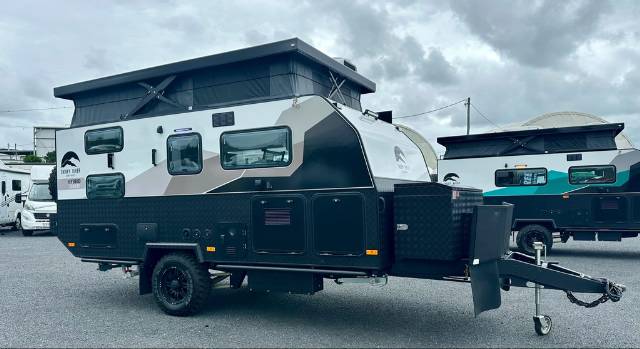

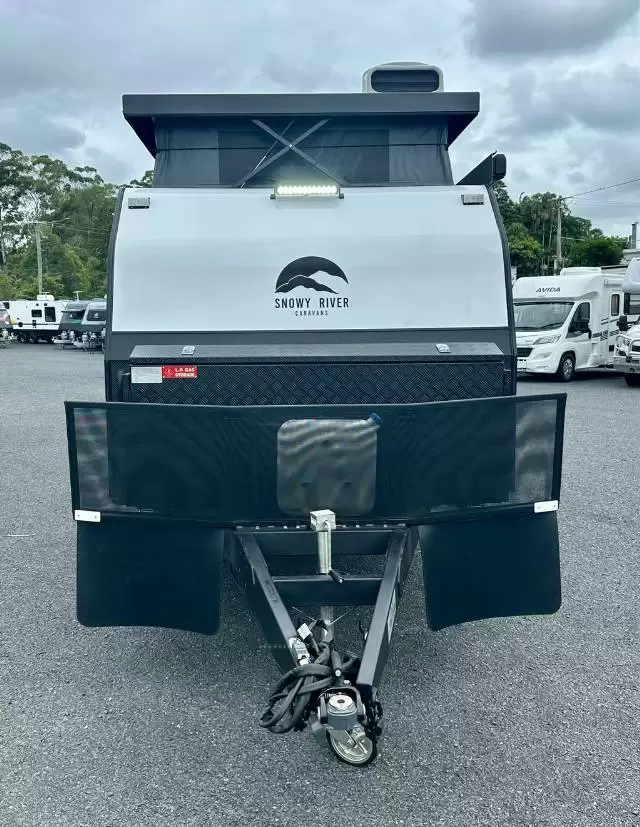

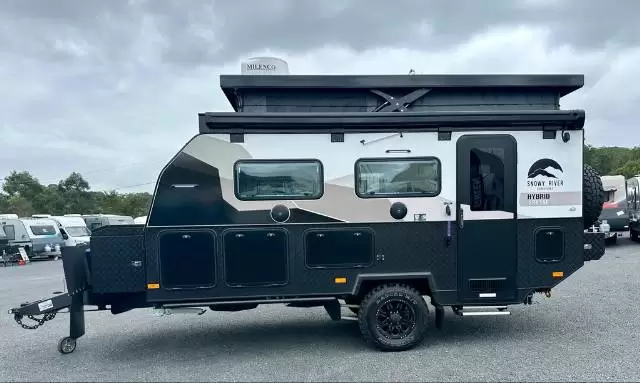

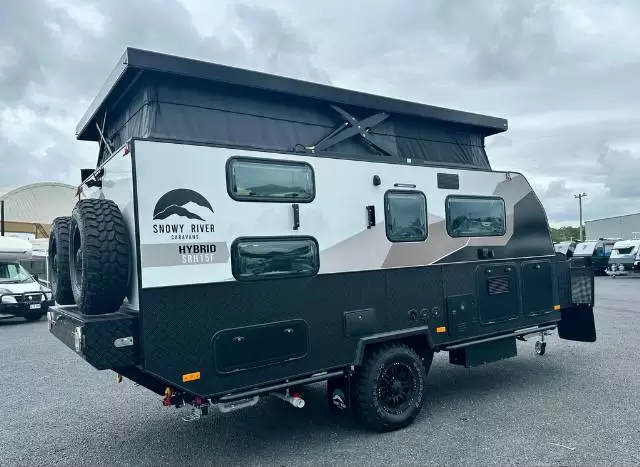

NEW 2025 SNOWY RIVER SRH15F FAMILY HYBRID 1 AXLE

  • Forest Glen
  • 2025

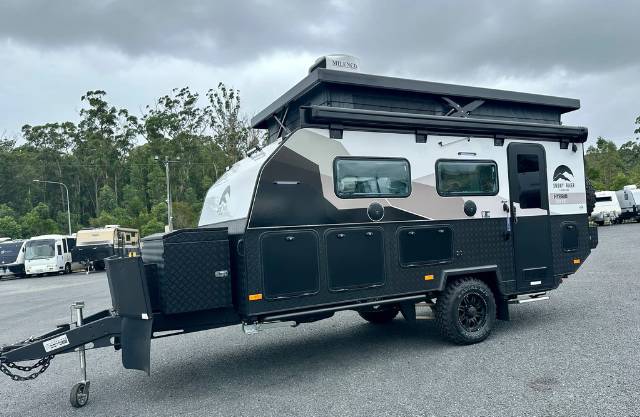

2513600
