SRT-22F

Van Overview

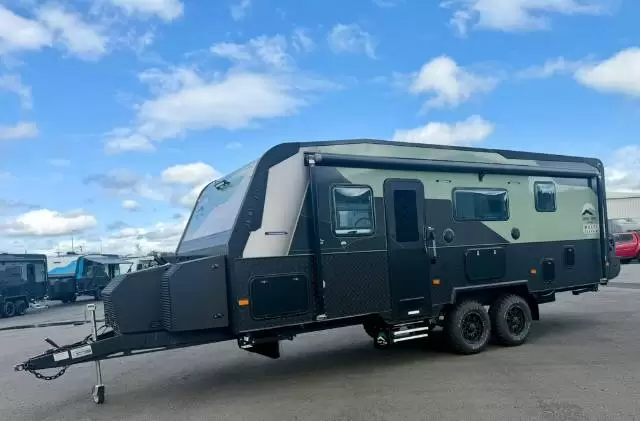

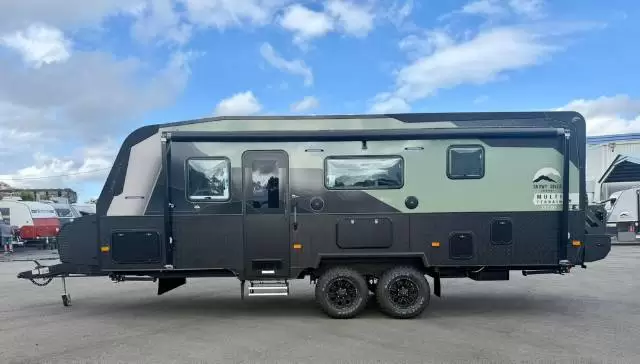

The remarkable SRT22F is a spacious 5-berth caravan packed with all the necessary specs and features to take you across Australia in unbeatable comfort. From rough terrain to winding roads; it's perfect for any family outing.

Highlights

Specs

Chassis
  • Deck 6" (50x150) Raptor Coating Black
  • Raiser to Chassis 2" (50x50)
  • A-Frame 6" (50x150) Drop & Extended 300mm
  • Hitch DO35 - BOTTOM
  • Bumper Bar Platform

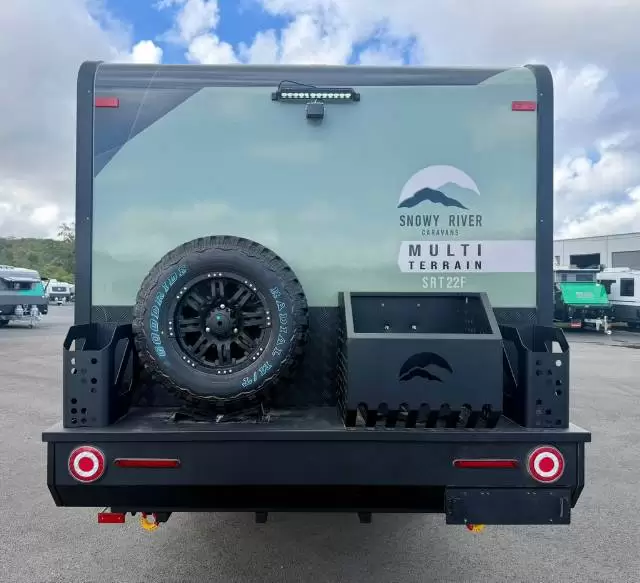

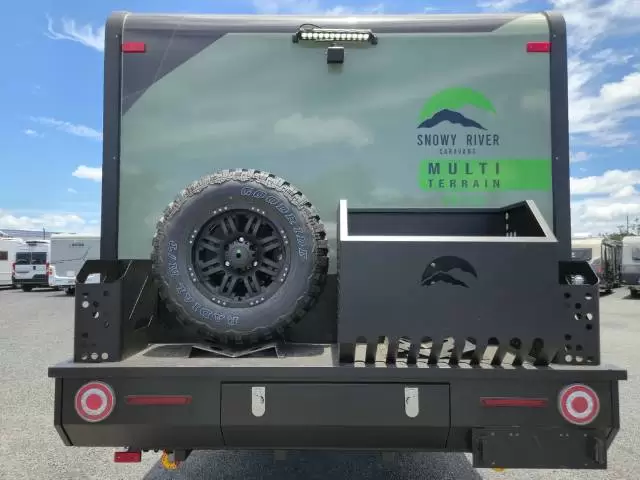

  • Spare Wheels 1 mounted on bumper bar

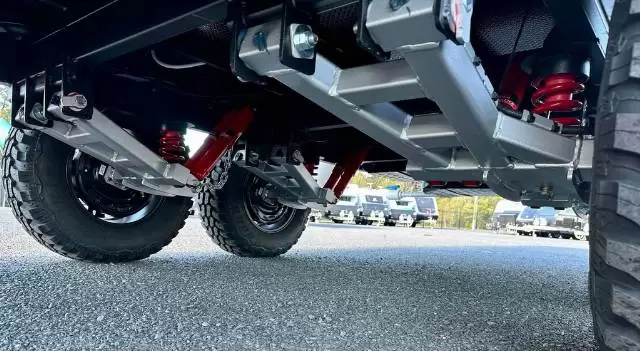

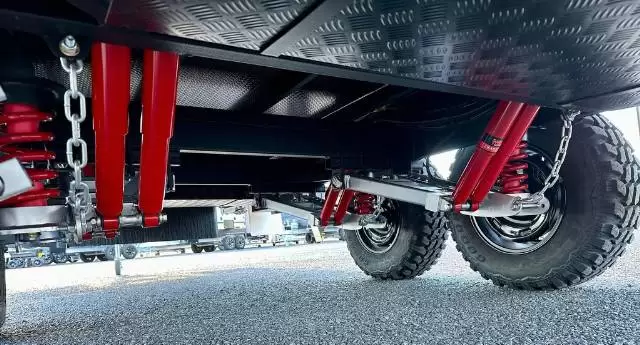

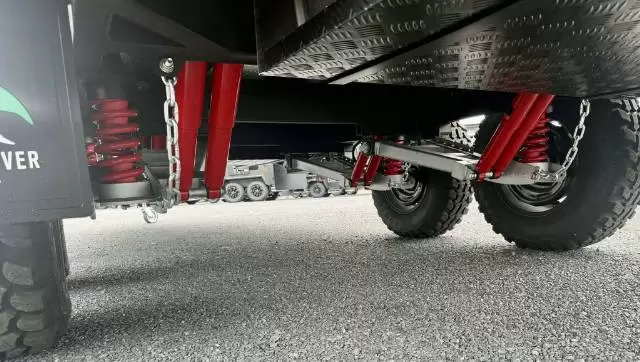

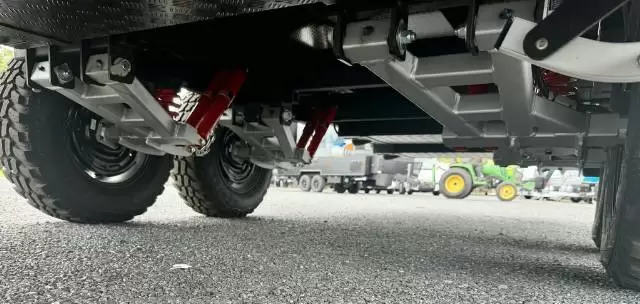

  • Suspension Rating LT Offroad Coil 3500KG (Tandem axle)
  • Brakes 12"
  • Shockers YES x 2 per Wheel
  • Rims 16" Alloy Black

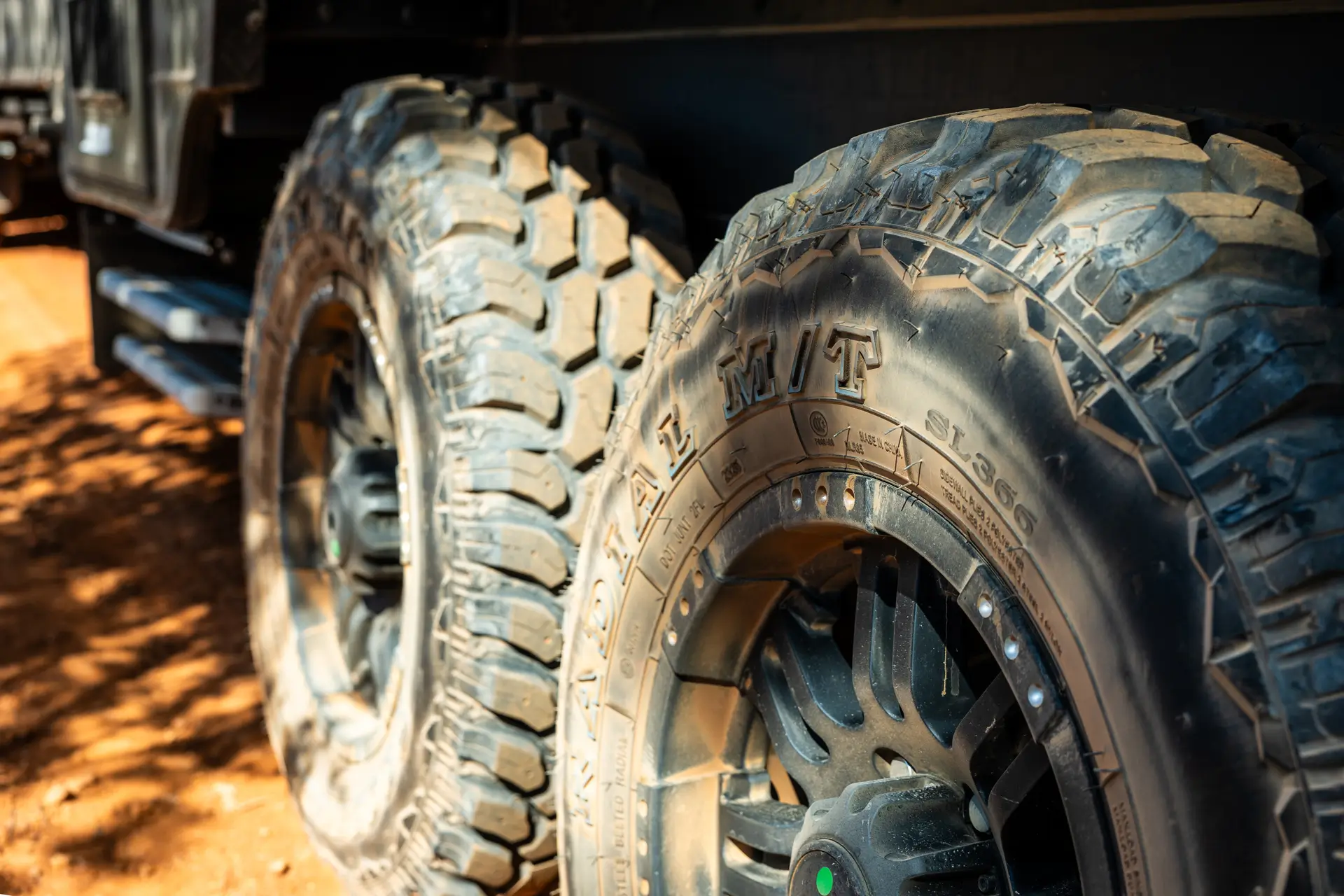

  • Tyres 245/75 R16 MT
  • Gas Bottle 2 x 9kg
  • Fresh Water Tanks 2 x 95L
  • Grey Water Tanks 1 x 95Ltr
  • Jerry can Holders 2 mounted on bumper bar
  • Step Double Manual
  • Battery Holders YES x 1 Dual
  • Jack Trail A Mate
  • Jockey Wheel Side Winder
  • Mud Flaps Wheels, Step & Battery Box
  • Brush Strip YES
  • Recovery Point YES
External
  • Windows Aluminium with Blind & Flyscreen
  • Main Door Yongan 1750 LHR Black

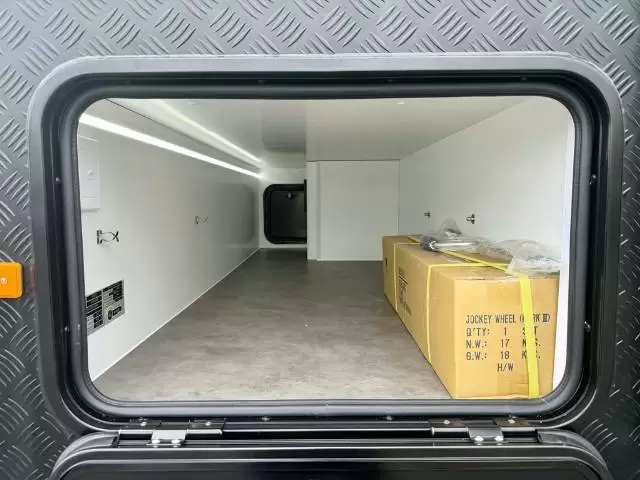

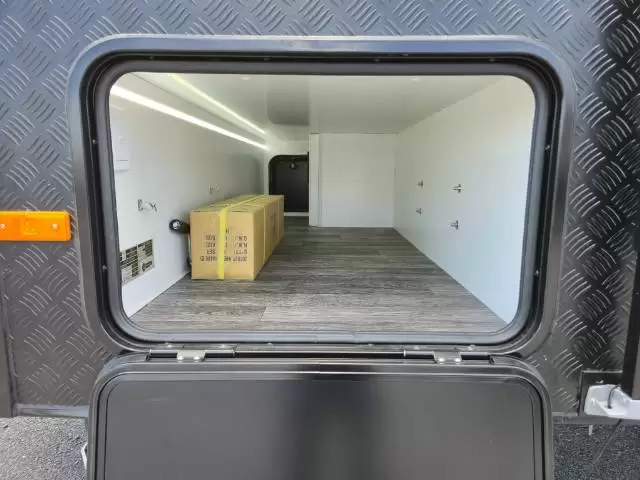

  • Boots Tunnel Boot Only
  • Cladding White Fiberglass
  • Front Protection Full Piece Black Checker Plate
  • Side Protection 750mm Black Checker Plate
  • Rear Protection 750mm Black Checker Plate
  • Insulation YES
  • Roof Hatches 1 x Small & 1 x Medium
  • Fan Hatches 1 x 12v
  • Pressure Hatches Dometic DRS
  • J-Mould Aluminium Trim Black
  • Wheel Spats Checker Plate Black
  • Picnic Table 1 x Metal Black
  • Awning 18ft Dometic 8700 Black & Support
  • Slideout Tray YES x 1
  • Access Doors Aluminium Black Frame
  • Main Door Grab H. Long Blue LED

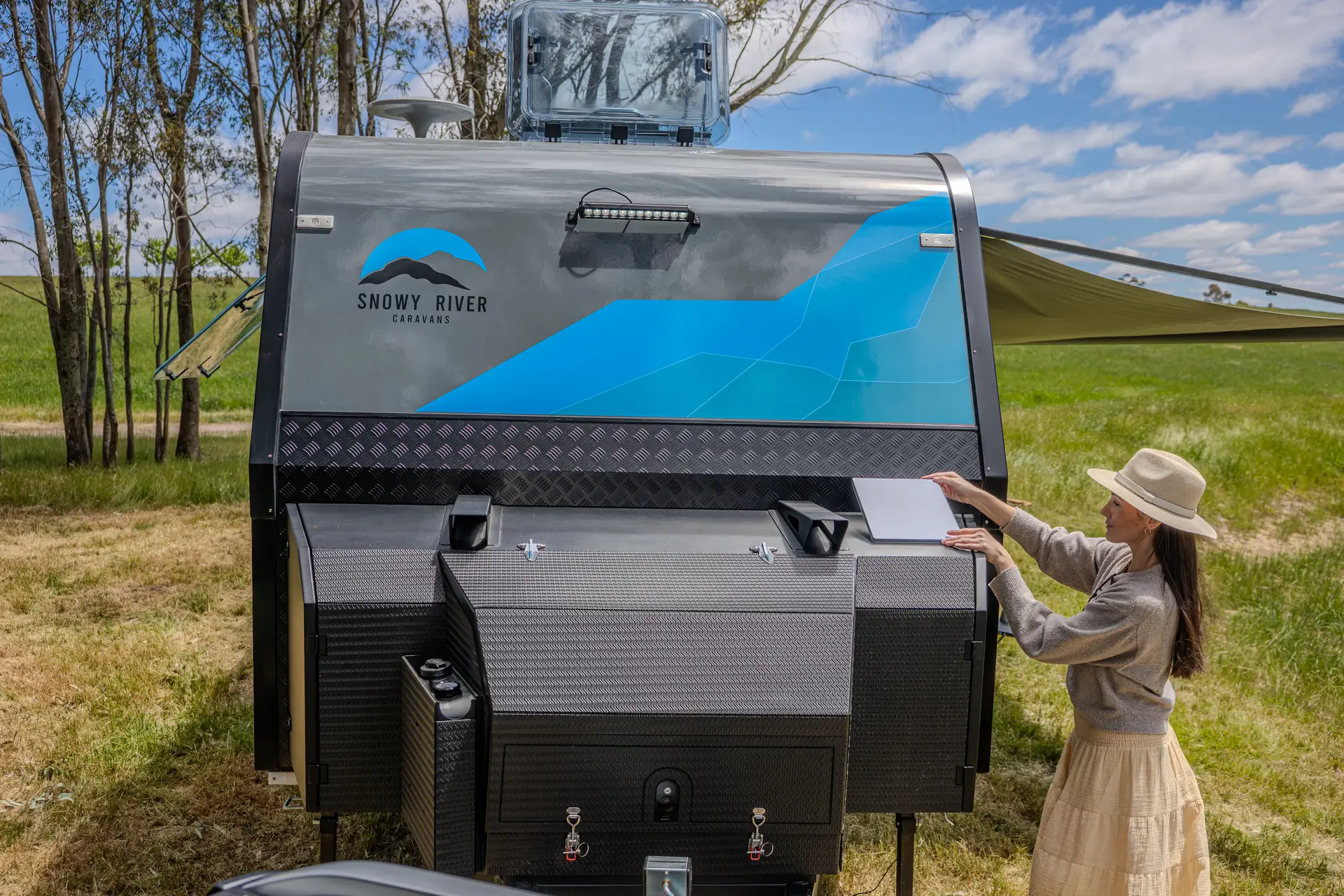

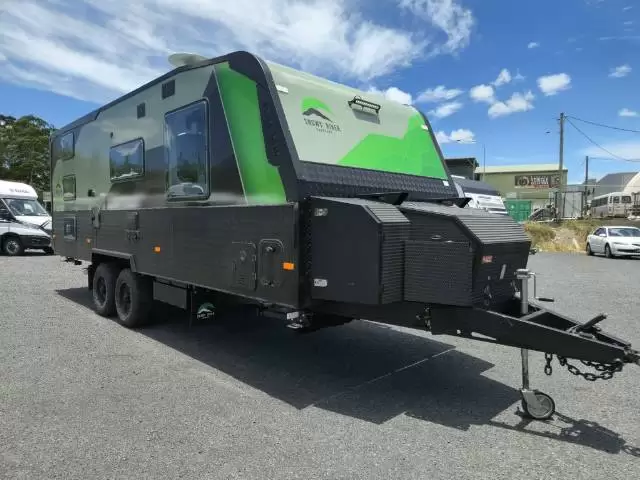

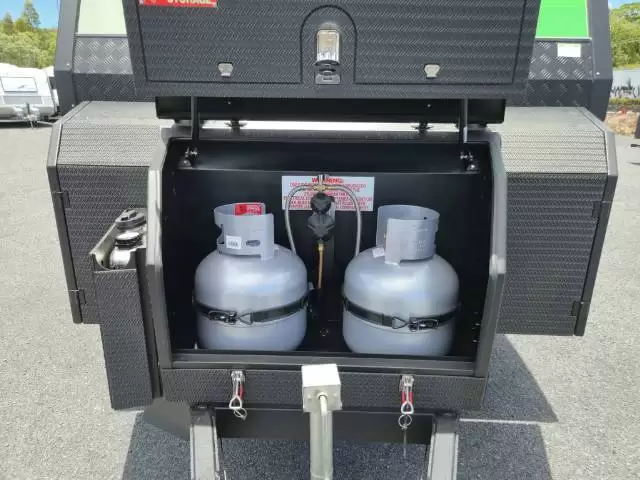

  • Toolbox AT Toolbox with G/Bottle Front & Slide Both Sides on A-Frame
Electrical
  • Annex Lights 3 x Doorside (Dual LED)
  • LED Spotlights 1 x Front, 1 x Rear
  • Internal Lights LED & LED Bar at Ensuite OHC
  • Strip Lights Under OHC with Dimmer Switch
  • Reading Lights 2 x Bedroom, 3 x Bunk Silver with USB
  • Boot Lights LED Strip
  • Car Plug 12 Pin Flat & Anderson Plug
  • Solar Power 3 x 200W Panel
  • Rear Camera Yes - Wireless
  • Battery Pack 2 x 200Ah Lithium on Chassis
  • TV Point 1 x Internal, 1 x External
  • TV Antenna Milenco TV/Radio
  • Radio Antenna Milenco TV/Radio
  • Electrical System Projecta PM310-BT4 System
  • Brake Safe Unit Sure Brake

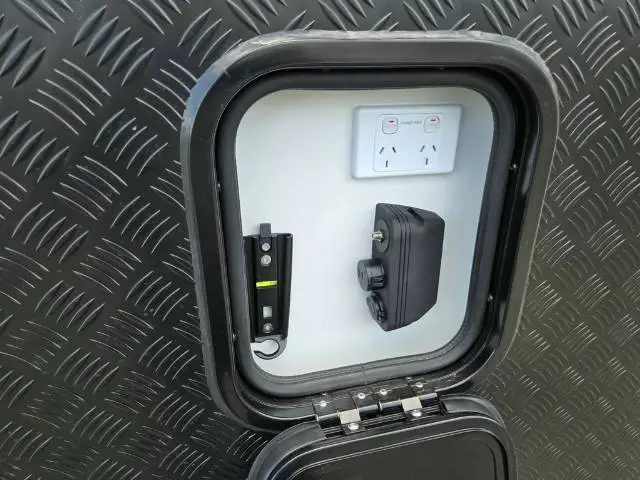

  • 240v P.P. 11 x Internal, 1 x External
  • 12v P.P. 1 x Internal, 1 x External
  • USB P.P. 1 x Internal
  • Wireless Charger YES x 2
  • Speakers 2 x Internal, 2 x External Black
  • External TV Box YES
  • Water Level Gauge Projecta for 3 x tank
  • Tyre Pressure Monitor YES
Furnishings
  • Mattress 1880 x 1530mm Q. Innerspring

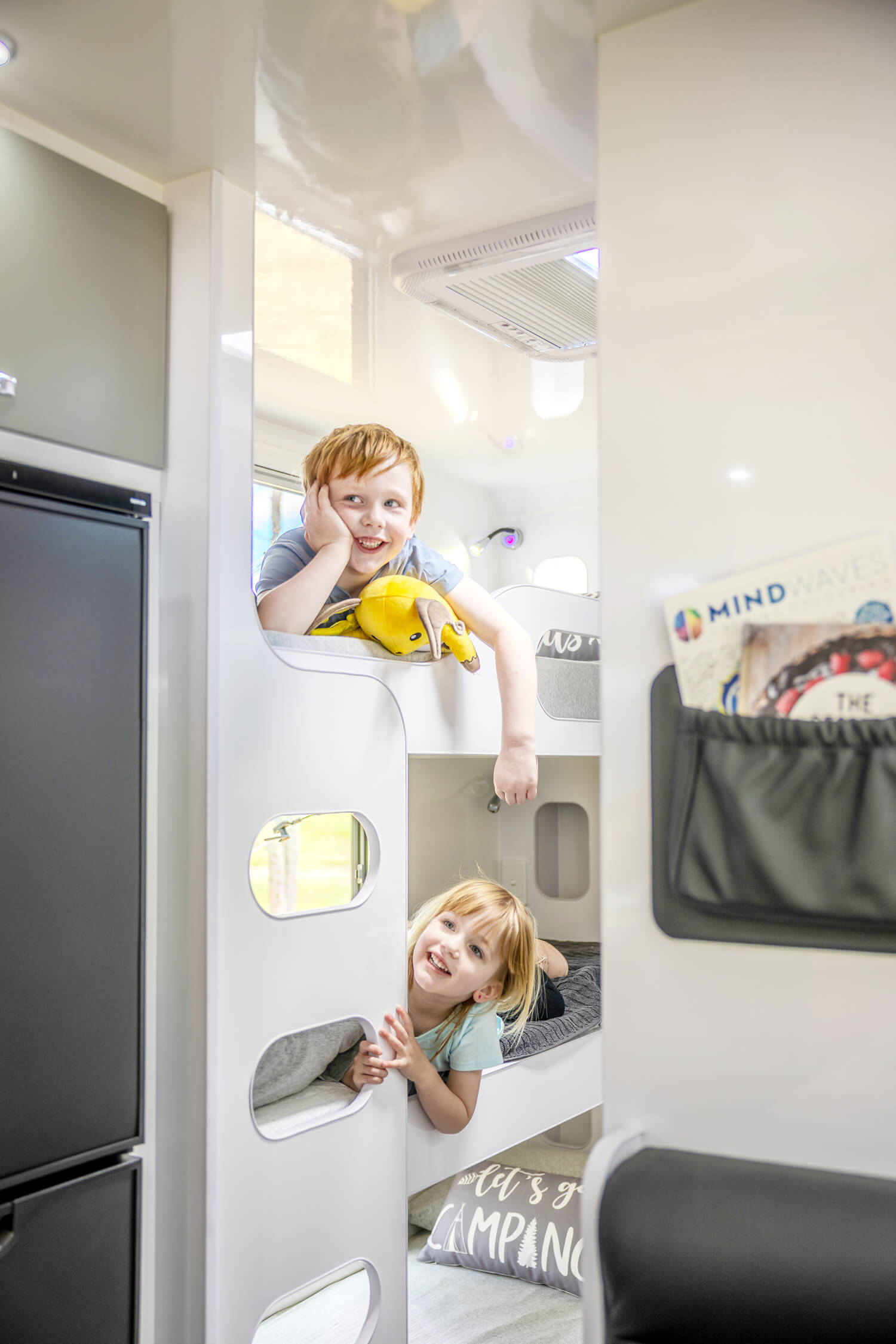

  • Bunk Option 3 x Bunks
  • Bunk Mattress 3 x 1820 x 650mm Single Innerspring
  • Main Door Cover Roller Blind
  • Door Handles Convex Handles Chrome
  • Int. Grab Handle YES - Curve Chrome
  • Magazine Holder YES x 1
  • TV Arm YES x 1 Standard, 1 Bracket
  • Table Leg Telescopic Black
  • Bath. Accessory Kit YES - Chrome
  • Towel Rail YES x 1 Chrome
  • Shower Door Frosted Glass Door
  • Cutlery Insert YES
  • Cabinet Door Hinge Piano
Colours
  • Furniture Ply White
  • Benchtop Edging Postformed
  • Furniture Style Flat
  • Seat Back Rolled
  • Bed Head Full HT As Per Upholstery
  • Main Door Padding YES with Magazine Pocket
Appliance
  • Rangehood Slimline 12V
  • Stove Dometic MiniGrill Gas/Elec
  • Fridge Thetford T2175C (174Ltr)
  • Washing Machine 3.5Kg Top Load W/M
  • Microwave 20Lt
  • Audio/Video 12v Single Din Stereo
  • Air Conditioner MyCoolman CCA3000 A/C
  • TV 24" Smart LED
  • H.W.S. Fogatti Instant Gas Black
  • Heater Diesel Heater
  • Fan YES x 2
  • Inverter 2000W with Changeover Switch
Plumbing
  • H.W.S. Fogatti Instant Gas Black
  • Heater Diesel Heater
  • Shower Small F/Glass
  • External Shower Black Square
  • Toilet Dometic Cassette Ceramic Bowl
  • Kitchen Sink Square
  • Sink Tap 3 Way Chrome
  • Water Filter YES
  • Ensuite Basin Counter Top Ceramic Oval White
  • Basin Tap Swivel Chrome
  • BBQ Gas Point YES x 1
  • Water Pump 1 x 12v Pump
  • External Water Tap YES on A-Frame & Protector
  • Main Water Inlet YES on Wall
  • Lockable T. Filler 2
  • Shower Head/Mixer Chrome
Measurements
  • Body Length (mm) 6739
  • Travel Length (mm) 9232
  • Travel Height (mm) 3143
  • Travel Width (mm) 2390
  • Axle Rating (kg) 3500

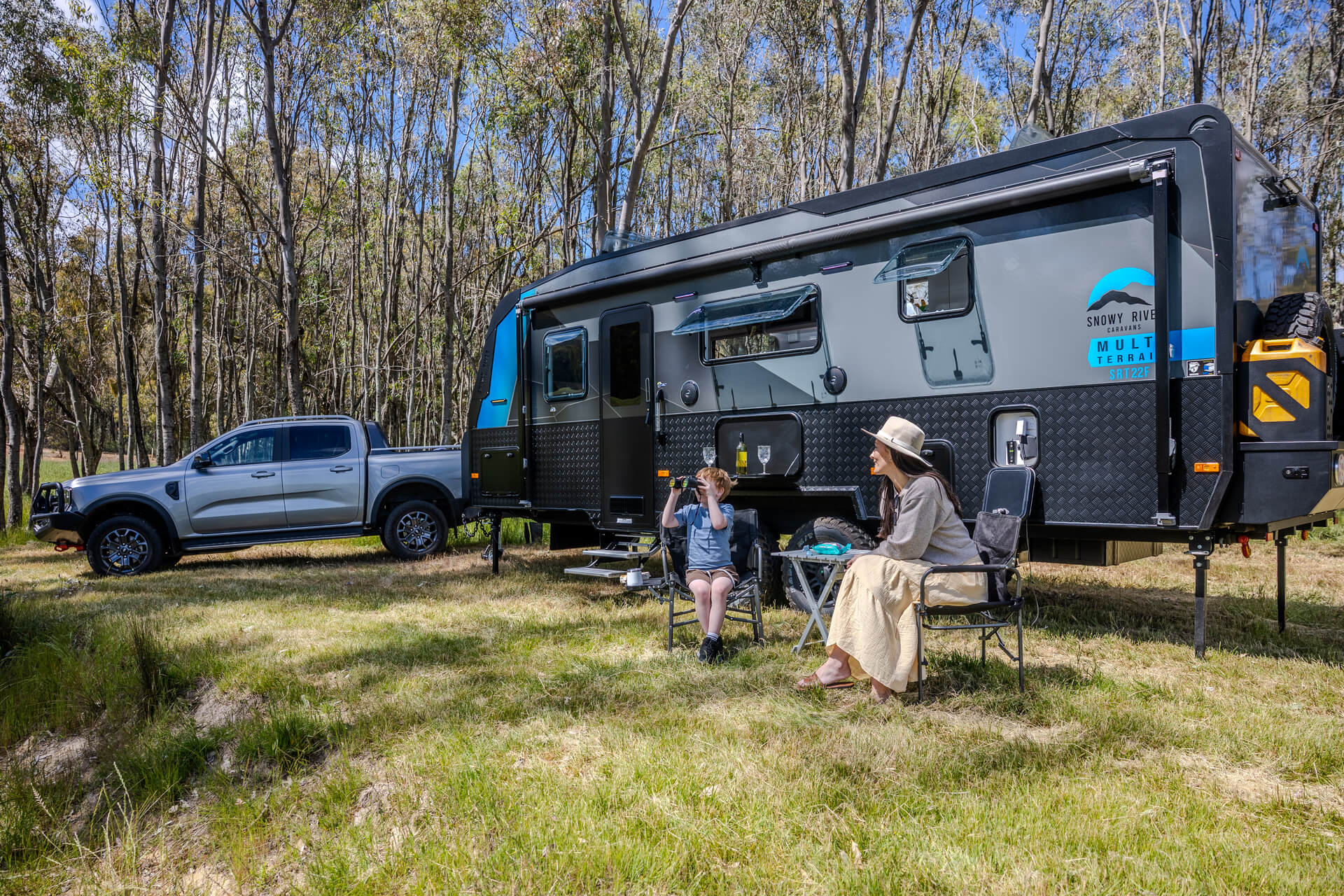

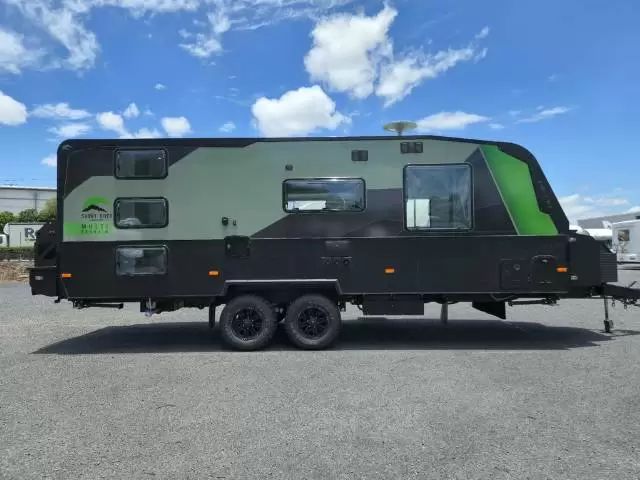

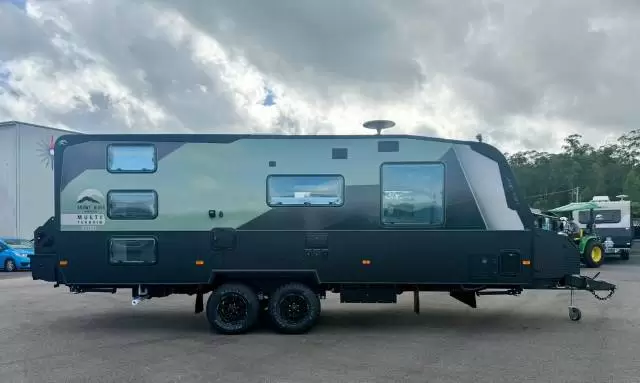

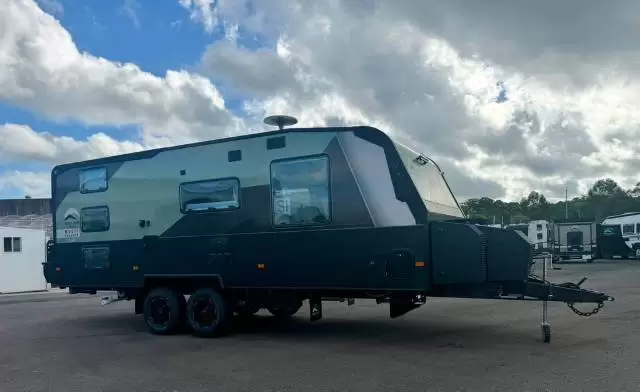

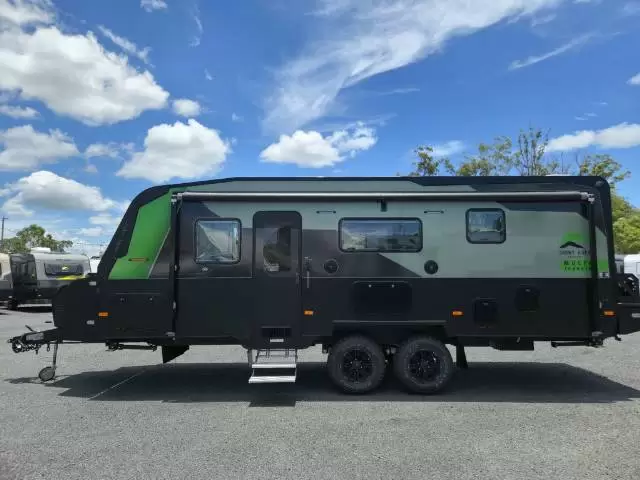

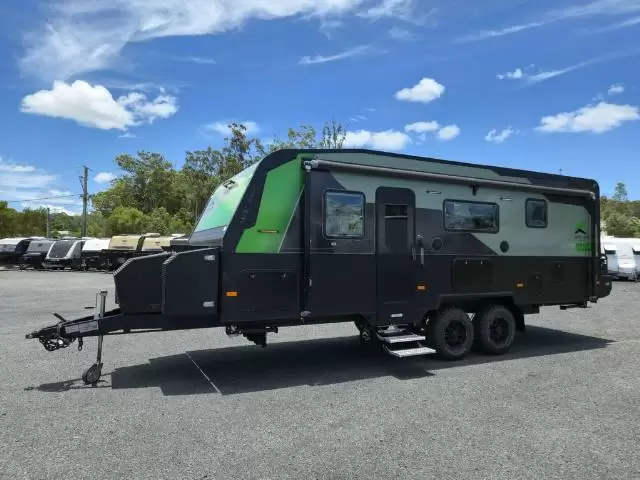

Exterior

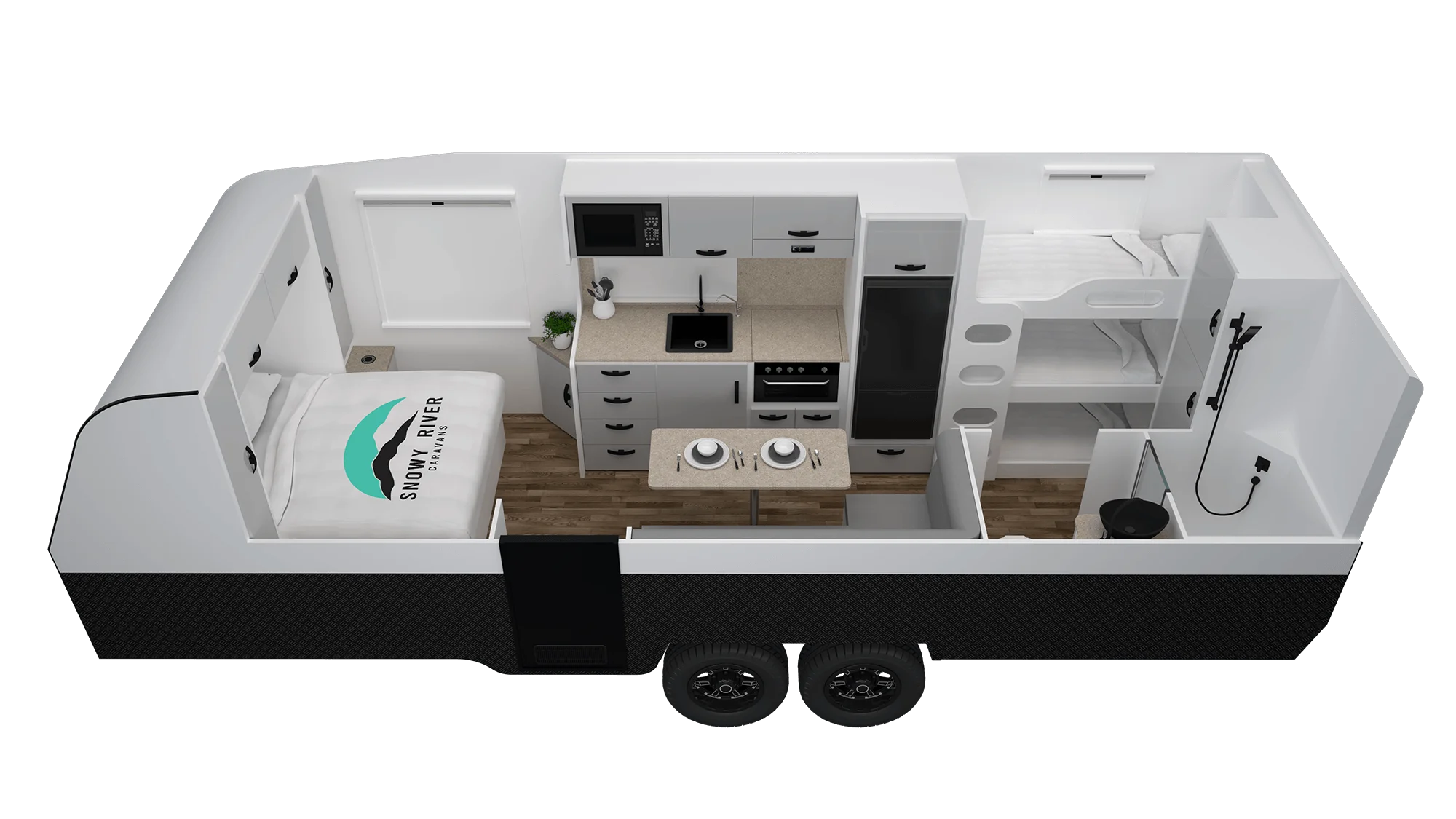

Floorplan
